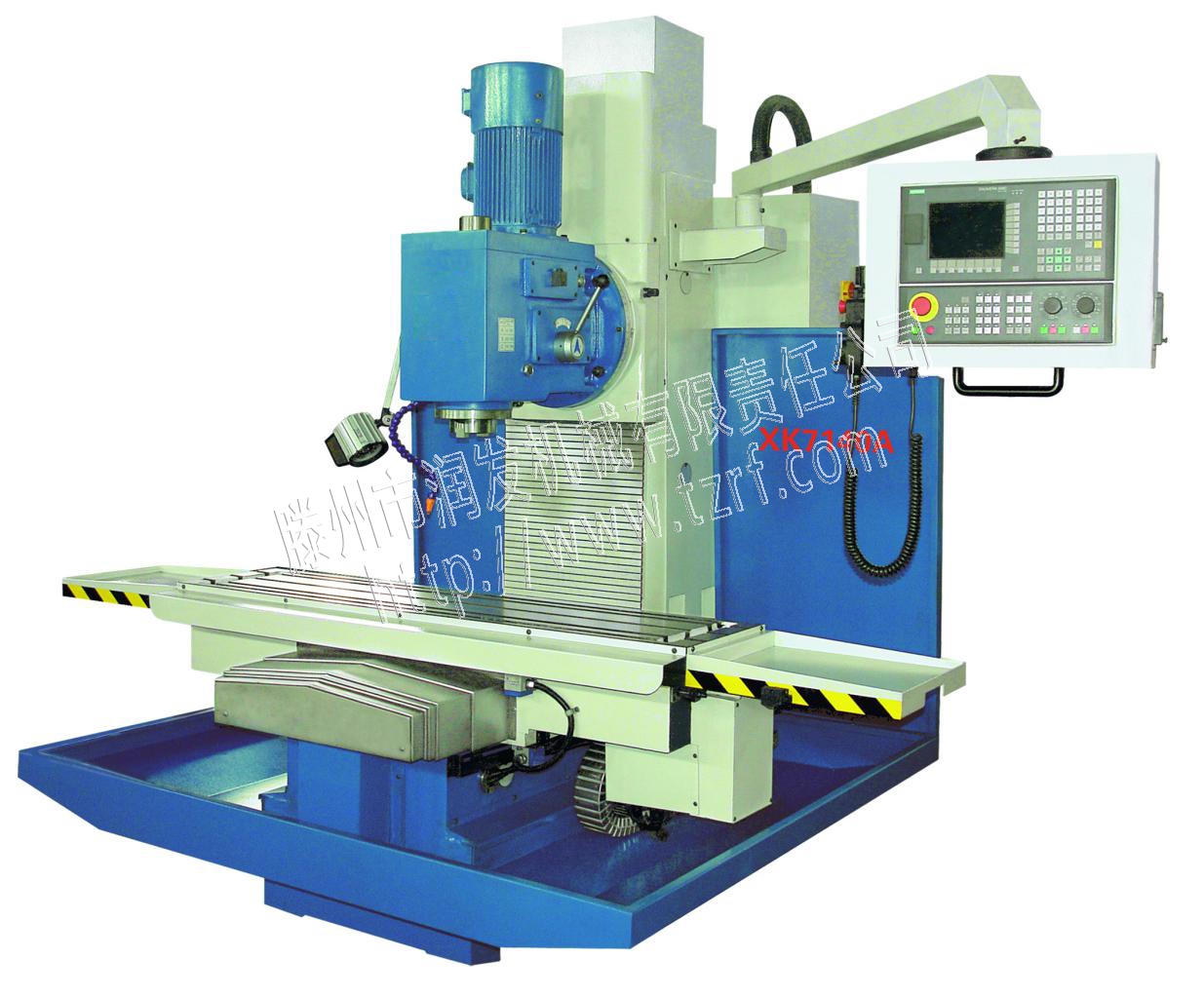

XK7140A CNC Milling Machine

  • XK712 small CNC MILLING MACHINE
  • CNC Milling Machine XK7136
  • Small CNC Milling Machine XK7125
  • XK7130 CNC MILLING MACHINE
  • XK7140A CNC Milling Machine
  • VMC713 CNC CENTER MACHINE
  • XH7130L CNC Milling Machine
  • VMC713 CNC CENTER MACHINE
  • Horizontal Knee Type Milling Machines XK6132/6140
  • XK5032 Vertical CNC Milling Machine
  • VMC850  MILLING CENTER
  • VMC940 CNC MACHINE CENTER
  • VMC640 CNC MACHINE CENTER
  • XK7118 SMALL CNC MILLING MACHINE
  • XHL7132 CNC MILLING MACHINE
  • XH7132 Vertical  CNC Machining Center
  • VMC1060 Machine Center

Product Abstract:

MAIN FEATURES OF CNC MILLING MACHINE XK7140A: 1. WORKTABLE QUENCHED, GRINDED AND TURCITED. 2. 3 AXIS SERVO MOTOR 3. TABLE SIZE: 1700X400MM 4. 3 AXIS TRAVEL: 1300X400X500MM 5. VOLTAGE AND COLOR CAN BE REQUESTED AT FOC. 6. OEM SERVICE PROVIDED.


Product Description

Specification

Unit

XK7140A

Table Size

mm

1700×400

T slots(N/WD)

3/18/110

Longitudinal travel

mm

1300

Cross travel

mm

400

Vertical travel

mm

500

Distance between spindle center and column

mm

500

Distance between spindle nose and table top

mm

100-600

Spindle taper

NT50

Spindle speed

r/min

125-1500(Variable speed)

Feeding motor

kw

2.3

Feeding speed

rpm

0-1500

Power of spindle motor

kw

7.5(Frequency conversion)

Positioning Accuracy

mm

±0.02°/300

Repositioning Accuracy

mm

±0.015°/300

Max.table safety load

kg

900

Machine Dimension

mm

2600×2200×2300

Net.Weight

kg

3800
