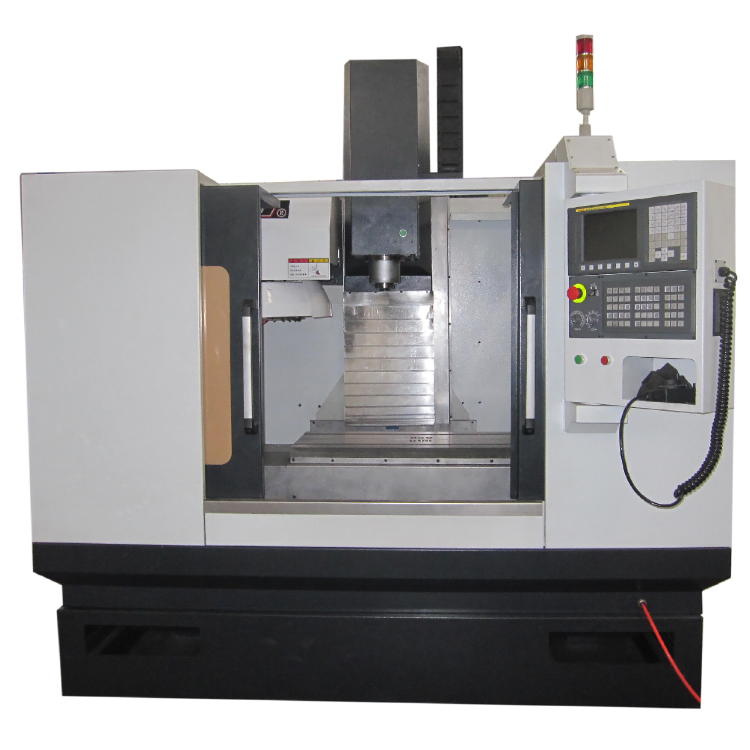

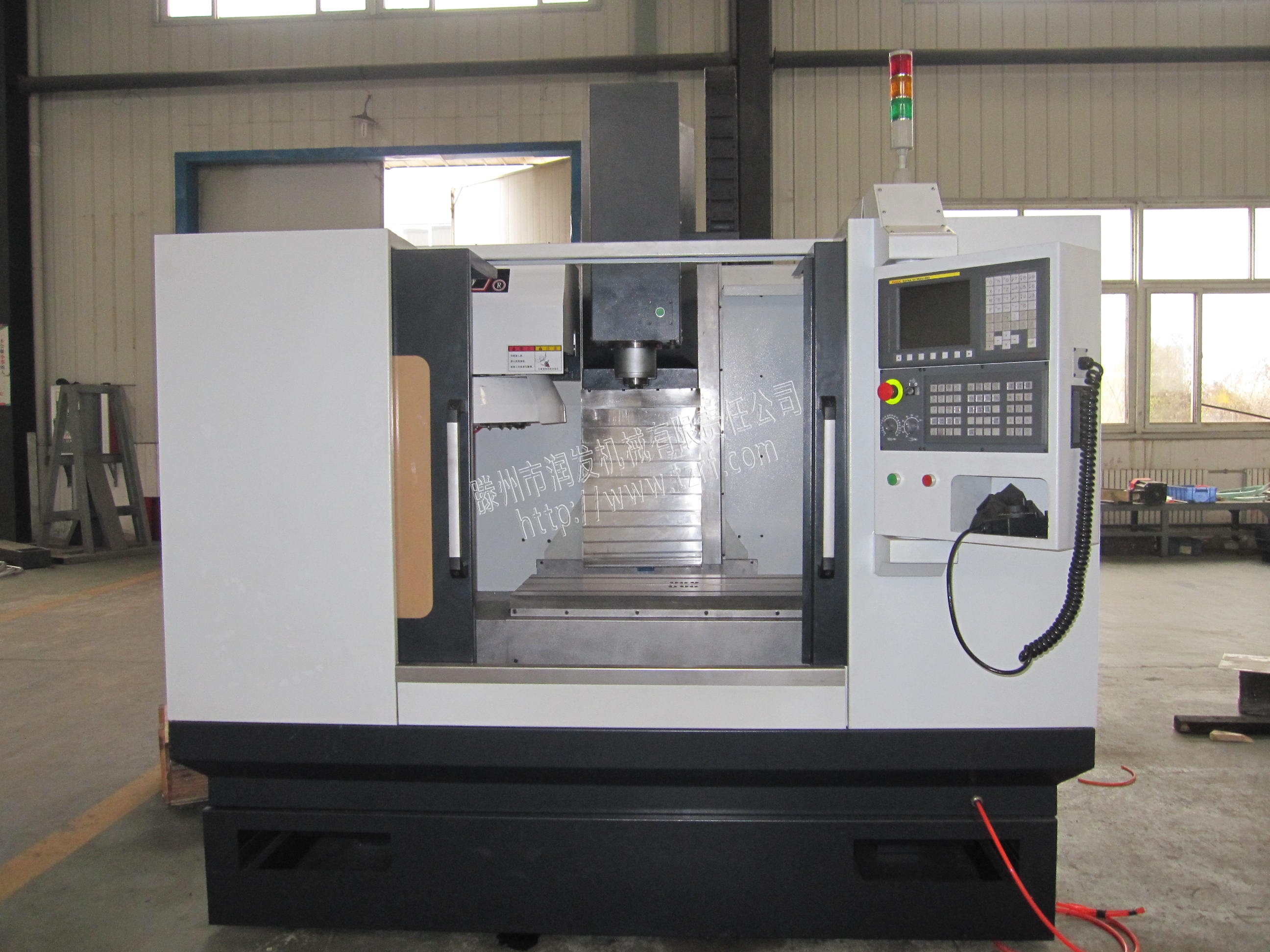

VMC713 CNC CENTER MACHINE

  • XK712 small CNC MILLING MACHINE
  • CNC Milling Machine XK7136
  • Small CNC Milling Machine XK7125
  • XK7130 CNC MILLING MACHINE
  • XK7140A CNC Milling Machine
  • VMC713 CNC CENTER MACHINE
  • XH7130L CNC Milling Machine
  • VMC713 CNC CENTER MACHINE
  • Horizontal Knee Type Milling Machines XK6132/6140
  • XK5032 Vertical CNC Milling Machine
  • VMC850  MILLING CENTER
  • VMC940 CNC MACHINE CENTER
  • VMC640 CNC MACHINE CENTER
  • XK7118 SMALL CNC MILLING MACHINE
  • XHL7132 CNC MILLING MACHINE
  • XH7132 Vertical  CNC Machining Center
  • VMC1060 Machine Center

Product Abstract:

The product is X, Y, Z-axis servo direct-control semi-closed loop CNC vertical milling machine, rail load large, wide span, high precision, reasonable structure and compact dimensions, the spindle servo motor through the belt drive. Can achieve a variety of disc-type, plate type, housing, cams, molds and other complex parts, to be completed by drilling, a variety of processing procedures milling, boring, expanding, hinges, rigid tapping, etc., suitable for multi-species, small quantities of products the production, to meet the complex, high-precision parts processing. It can be equipped with a fourth axis of rotation in order to meet the processing requirements of special parts.


Product Description

Main structure and features

1、     the base, slide, table, column, headstock and other major parts are made of HT300 cast iron base; the base for the box-type structure, compact and reasonably symmetrical rib structure ensures high rigidity and bending cushioning properties of the base member ; A straddle-type bridge columns and internal grid-like ribs, effectively ensure the rigidity and precision Z-axis cutting force; the base member is made of resin sand molding and after aging treatment, long-term performance for the machine stability has provided a guarantee.

2、     X / Y / Zguide with a high speed, high rigidity, low friction, low noise, low temperature rise characteristics change, with automatic forced lubrication, improve machine accuracy life;

3、    Zto add balance with weights, to ensure smooth movement of the headstock, stable; Z loss of power to the drive motor with brake device;

4、    three directionsX, Y, Z feed using high-precision high-strength inner loop double nut preloading large lead ball screws, feed rate is high; drive motor through flexible coupling directly connected with the screw, into the servo motor directly to the power transfer to the high-precision ball screw, no backlash, which guarantees the machine's positioning accuracy and synchronization;

5、     using Taiwan's high-speed, high-precision, high-rigidity spindle unit, axial and radial load capacity, maximum speed up to 8000rpm;

  1. thespindle center blowing structure, in the center of the spindle loose knife quickly with high-pressure gas inside the spindle taper cleaning, to ensure accuracy and tool holder life;

7, X, Y, Zthree directions rails, screw protection devices are used to ensure that the screw and clean the rails, ensure that the machine's power transmission and motion accuracy and longevity;

8, the machine adopts full protective outer protective structure design, easy operation, safe and reliable;

9, using a reliable centralized lubrication system, timing quantitative lubrication points on the machine automatically intermittent lubrication, lubrication time can be adjusted on the basis of working conditions;

10, the use of oil-water separation device can be collected most of the lubricating oil is separated from the coolant, to prevent the rapid deterioration of the cooling liquid, is conducive to environmental protection;

11, machine operating system using ergonomic principles, operation box independent design, can itself rotate, easy to operate.



III.Maim Paramters



a)      technical

item

unit

model

remark

travel

X axis

mm

550



Y axis

mm

350



Z axis

mm

500



Spindle nose to worktable

mm

130-630



Spindle center to column guideway

mm

350



Work table

Work table size

mm

320×800



Max. Loading weight

Kg

300



T-slot

mm

3-14-110mm



spindle

Main motor power

kW

5.5



Spindle taper



BT40



Spindle diameter

mm





Spindle speed

rpm

8000



Rapid move speed

X axis

m/min

24

Differ by system config

Y axis

m/min

24

Z axis

m/min

24

Cutting feed speed

mm/min

1-4000

precision

Locating precision

mm

0.01±0.005



Repeat locating precision

mm

0.008±0.005



Power supply

voltage

V

AC380



Voltage fluctuate range



-10%~+10%



frequency

Hz

50±1



Total power

Kw

14



Air source

pressure

Kg/cm2

6







cooling

Coolant pump power

Kw

150



Coolant pump flow

L/min

75



Coolant pump head

m

16



others

Machine weight

Kg

2200



Overall dimensions

mm

2300×1760×2200







b)      CNC control system







No.

Name

Model

X/Y/Z axis AC servo motor torque N.m)

1

SIEMENS

808D



2







3







4
