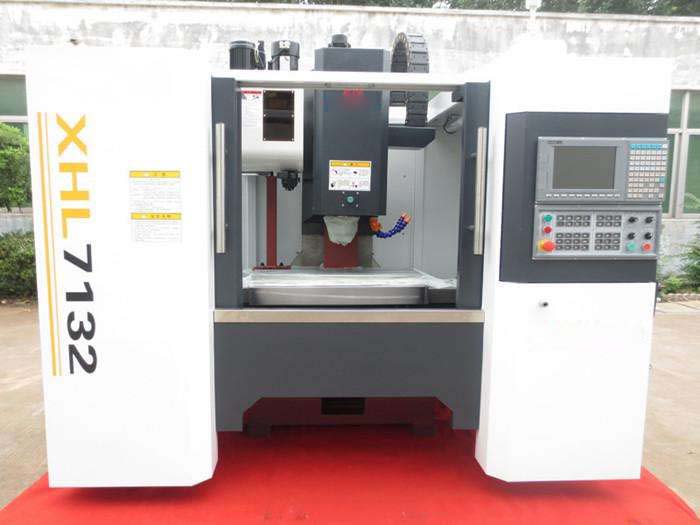

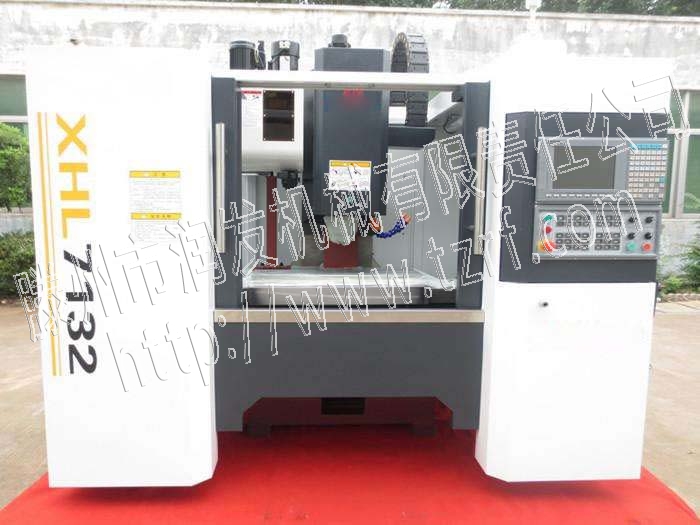

XHL7132 CNC MILLING MACHINE

Product Name:
XHL7132 CNC MILLING MACHINE
Model No.:
XHL7132
Minimum Order:
1

Product Abstract:

The products are X, Y, Z three-axis servo direct control semi-closed-loop vertical machining center, three-axis steel ball rolling linear guide, rail load, wide span, high precision, compact structure and dimensions compact, For the servo motor driven by the timing belt. Can be achieved on a variety of discs, plates, shells, cams, molds and other complex parts of a clamping, drilling, milling, boring, expansion, hinge, rigid tapping and other processes, suitable for multi- Small and medium-volume production of products, to meet the complex, high-precision parts of the processing. Can be equipped with a fourth rotary shaft to meet the processing requirements of special parts.

Product Description

Specifications			XK7132
Worktable size			800 X 320
T-Slot No/width/interval			3-14mm
Maximum Loading weight			300kg
X axis travel			550mm
Y axis travel			350mm
Z axis travel			500mm
Distance from spindle nose to table surface			100-600mm
Distance from spindle axis to column surface			360mm
Spindle taper			BT40(spindle unit)
Spindle diameter			120mm
Spindle Maximum rotate speed			80-8000 r.p.m
Main motor power			5.5kw(servo motor)
Feed motor		X axis torque	6 N.M
		Y axis torque	6 N.M
		Z axis torque	10 N.M
Rapid move speed			20/20/20 m/min
Cutting feed speed			1-5000 mm/min
Screw parameter(diameter/pitch of screw)			32mm/10mm
Linear guide width X/Y/Z			35mm
Precision	Positional Accuracy		0.01mm
	Repositional accuracy		0.008mm
Steel tapping			YES
Change tools type			Pneumatic
Magazine Type			Disc Type
Tool Capacity			16T
Max.tool diameter			80mm
Max.tool length			300mm
Max.tool weight			8kg
Voltage			AC220V/60HZ 3PHASE
Voltage fluctuation range			－10%～＋10%
Frequency			60±1
Total Power			18kw
Coolant pump power			0.37kw
Coolant pump Flow			75L/min
Coolant pump head			16m
Use pressure			0.6Mpa
Machine weight			3500kg
CNC control System			KND2000MCI
Overall Dimensions(full guard)			2650x2160x2500

CNC Control System

Item No.	CNC Name	MOdel	Remark
1	KND	KND-2000Mci	Standard
2	SYNTECH	10A/10B	optional
3	GSK	25I	optional
4	FANUC	FANUC OI mate-MD	optional
5	MITSUBISHI	M70	optional
6	SIEMENS	828D	optional

XH(L)7132	Packing List
1	Machine	XH(L)7132	1set
2	Main Spindle	BT40 8000RPM	1pc	Mount on machine
3	Tool Magazine		1pc	Mount on machine
4	Lubricating System		1set	Mount on machine
5	Lamp		1set	Mount on machine
6	Full guard		1set	Mount on machine
7	Cleaning air gun		1pc	Mount on machine
8	Pneumatic System		1set	Mount on machine
9	Coolant System		1set	Mount on machine
10	Milling Chuck	BT40-ER32（8件套）	1set	Pack in tool box
11	Adjust Pad IRON		8pcs	Pack in tool box
12	Inner-Hex Wrench	4、5、6、8、10	1set	Pack in tool box
13	Wrench	S8-10、S12-14、S17-19	1set	Pack in tool box
14	Footscrew		8pcs	Pack in tool box
15	Hex nut	M16	8pcs	Pack in tool box
16	Flat washer	16	8pcs	Pack in tool box
17	CNC system		1set	Mount on machine
18	Operation manual		1	Pack in tool box
19	Quality Certificate		1	Pack in tool box
20	CNC operation Manual		1	Pack in tool box
21	Packing List		1	Pack in tool box
