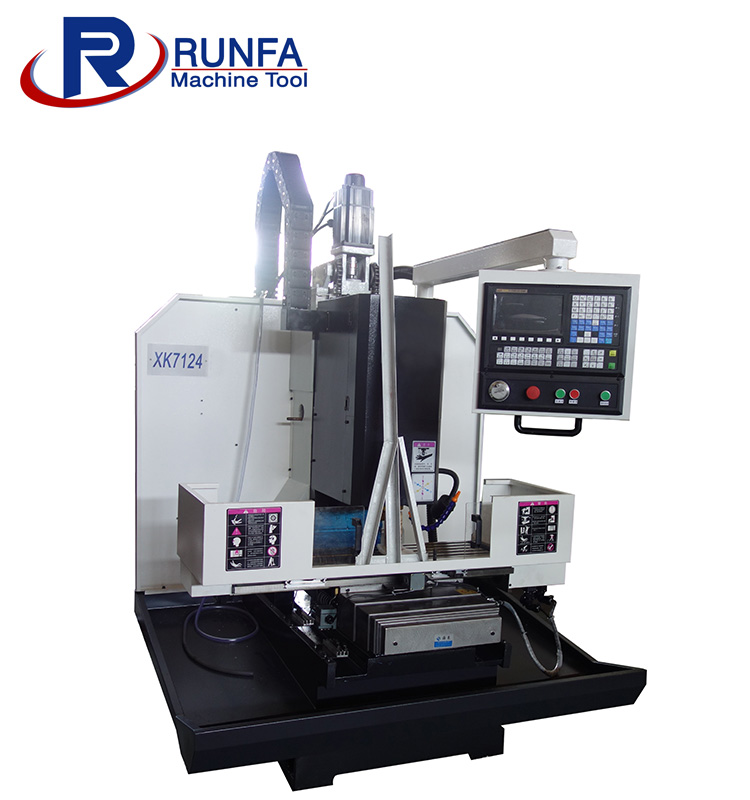

XK712 small CNC MILLING MACHINE
Product Name:
XK712 small CNC MILLING MACHINEModel No.:
XK7124Minimum Order:
1
Product Abstract:
XK7124 CNC milling machine is one small cnc milling and drilling machine,but as one machine tool,it is better than other same machine. As it has reinforced column,stable slide ram and entire rigidity of all guideway,worktable.Its precision can achieve 0.01-.0.2mm,it has best quality and best function.
- Product Description
Features:
- rectangle guideway ,stable and durable machine frame
- hardened and ground precisely column and guideway with high precision
- Used for machining box parts, shell parts, disc-shaped parts.
- Two style of tool change are available, manually and pneumatically.
- CNC control system could be adapted by servo motor, providing good cost-effective scheme to customers.
- Machine stand and machine body are designed separately for easy and flexible installment by user.
Item
Unit
XK7124A
XK7124B
Worktable size
mm
1000 x 240
1000 x 240
Travel of table X,Y,Z
mm
500 x 300 x 400
500 x 300 x 400
Size of T-Slots
5/14/44
5/14/44
Range of spindle speed
r.p.m
3000
8000
Spindle taper
BT 40
BT 40
Distance from spindle center to column surface
mm
300
300
Distance from spindle nose to surface of worktable
mm
450
450
Main motor power
kw
3.0(variable frequency motor)
3.7(Servo motor)
X,Y axis motor power
Nm
6.0(servo motor)
6.0(servo motor)
Z axis motor power
Nm
15(servo motor)
15(servo motor)
Locating precision
mm
0.02
0.02
Repeat Locating precision
mm
0.01
0.01
Speed of power feed
Mm/min
1-4000
1-4000
Machine weight
kg
900
900
Overall dimension
mm
1300 x 1400 x 2000
1300 x 1400 x 2000
