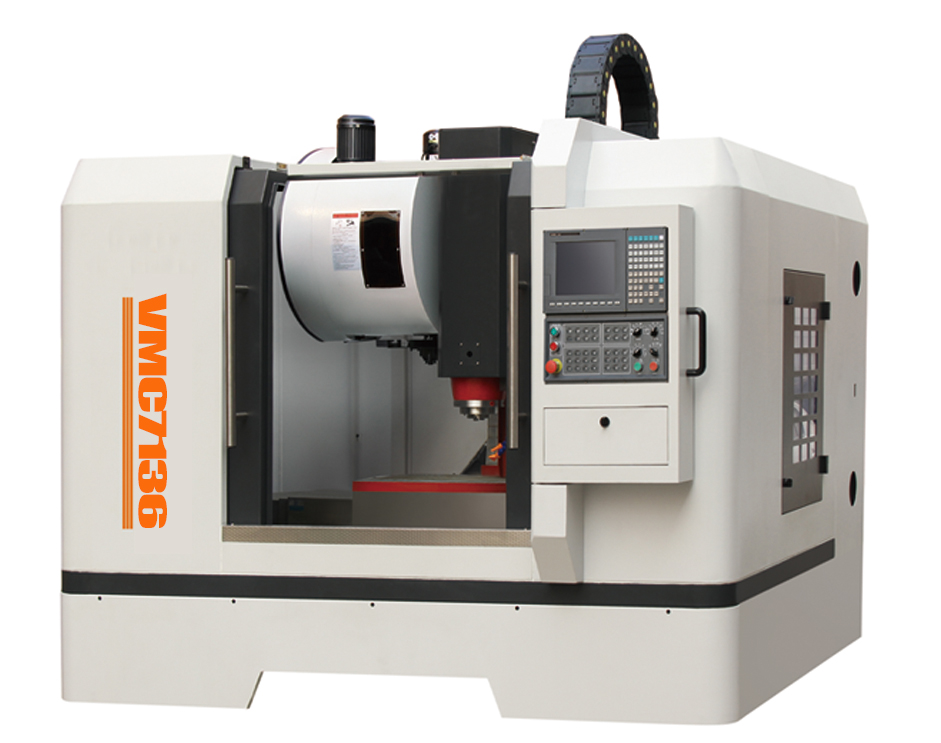

VMC713 CNC CENTER MACHINE

Product Description

VMC7136

●CNC control system:KND1000Mi-c;

●Main spindle servo motor,maximum speed:6000rpm,power 5.5kw;spindle unit;

●Taiwan linear rolling guideway;

●Manual Pulse Generator;

●Automatic centralized lubrication system;

●Z axis balanced;

●Outside coolant system and water box;

●Simple guard cover and guide way protective cover;

●adjusting iron pad;

Item Name	Unit	VMC
worktable	mm	1000 x 360
T-Slot number/size		3/18
Maximum loading weight	Kg	300
X,Y,Z axis travel	mm	900 x 400 x 500
Max . Spindle speed	r.p.m	6000
Main Motor power	kw	5.5(servo)
Spindle taper		BT40
Distance from spindle center to column	mm	450
Distance from spindle nose to worktable	mm	500
X,Y axis Servo motor	N.m	7.7/7.7
Z axis Servo motor	N.m	10
X,Y axis fast move speed	Mm/min	20000
Z axis fast move speed	Mm/min	15000
Coolant pump power	w	90
Coolant pump flow	L/min	10
Positioning accuracy	mm	±0.02
Repeatability positioning accuracy	mm	±0.015
Speed of power feed	Mm/min	1-10000
Machine weight	Kg	3500
Overall size	mm	2200 x2800 x 2500
