Home > CNC Milling Machine > VMC1060 Machine Center

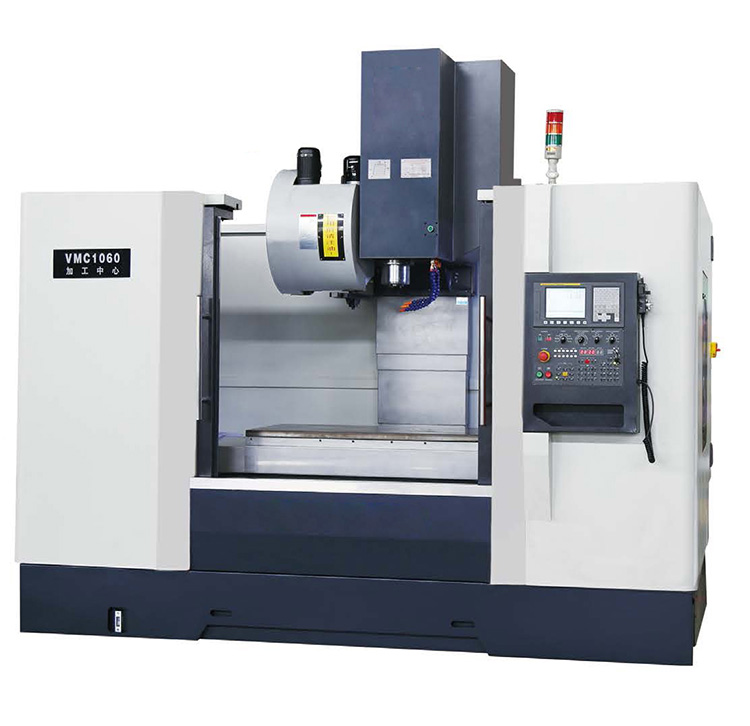

VMC1060 Machine Center

Product Description

Model	VMC1060
travel
X axis	1000mm
Y axis	600mm
Z axis	600mm
Spindle nose to table surface	140-700mm
Spindle axis to column surface	610mm
Feed
X axis fast move speed	20m/min
Y axis fast move speed	20m/min
Z axis fast move speed	18m/min
Cutting feed speed	1-5000mm/min
Worktable
Table size	550×1100mm
Max.loading weight	750
T-slot	5-18-100mm
spindle
Max. speed	8000rpm
Spindle diameter	150mm
Spindle taper	BT40
Main motor power	11KW
ATC
MODEL	16T
TYPE	ARM TYPE
MACHINE
Weight	6700 Kg
Overall dimentions（L×W×H）	2700×2400×2700mm
