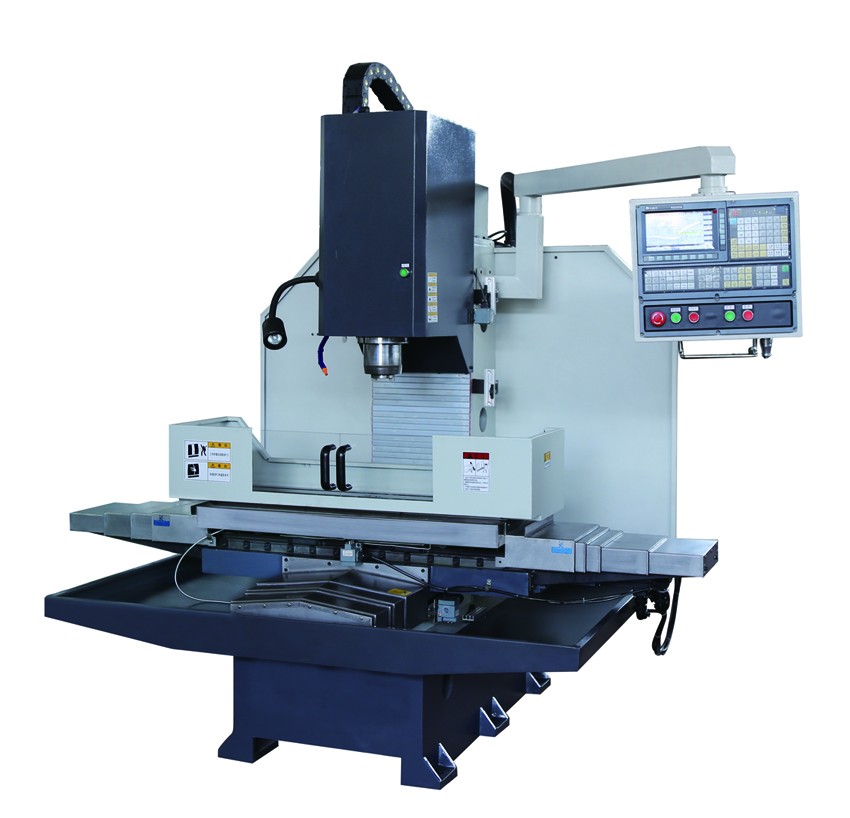

XH7130L CNC Milling Machine

  • XK712 small CNC MILLING MACHINE
  • CNC Milling Machine XK7136
  • Small CNC Milling Machine XK7125
  • XK7130 CNC MILLING MACHINE
  • XK7140A CNC Milling Machine
  • VMC713 CNC CENTER MACHINE
  • XH7130L CNC Milling Machine
  • VMC713 CNC CENTER MACHINE
  • Horizontal Knee Type Milling Machines XK6132/6140
  • XK5032 Vertical CNC Milling Machine
  • VMC850  MILLING CENTER
  • VMC940 CNC MACHINE CENTER
  • VMC640 CNC MACHINE CENTER
  • XK7118 SMALL CNC MILLING MACHINE
  • XHL7132 CNC MILLING MACHINE
  • XH7132 Vertical  CNC Machining Center
  • VMC1060 Machine Center

Product Abstract:

Large width of X,Y,Z hardened guide way, ensure the rigidity and stability when processing. High speed and high precision spindle Good coolant system with high-lift pump can have good coolant when high speed processing. Full splash guard of body and cabinet, more safe and beautiful.


Product Description

Specifications

XK7130L

Worktable size

1000 X 300 mm

T-Slot No/width/interval

3-16mm-100mm

Maximum Loading weight

200kg

X axis travel

600mm

Y axis travel

380mm

Z axis travel

450mm

Distance from spindle nose to table surface

100-550mm

Distance from spindle axis to column surface

370mm

Spindle taper

BT40(spindle unit)

Spindle Maximum rotate speed

3000 r.p.m

Main motor power

3kw(converter motor)

Feed motor

X axis torque

6 N.M

Y axis torque

6 N.M

Z axis torque

10 N.M

Rapid move speed

10 m/min

Cutting feed speed

1-5000 mm/min

Screw parameter(diameter/pitch of screw)

30mm/6mm

Linear guide width X/Y/Z

30mm

Precision

Positional Accuracy

0.02mm

Repositional accuracy

0.015mm

Steel tapping

NO

Change tools type

Pneumatic

Use pressure

0.6Mpa

Machine weight

1500 kg

CNC control System



Overall Dimensions(full guard)

2200x1500x2300
