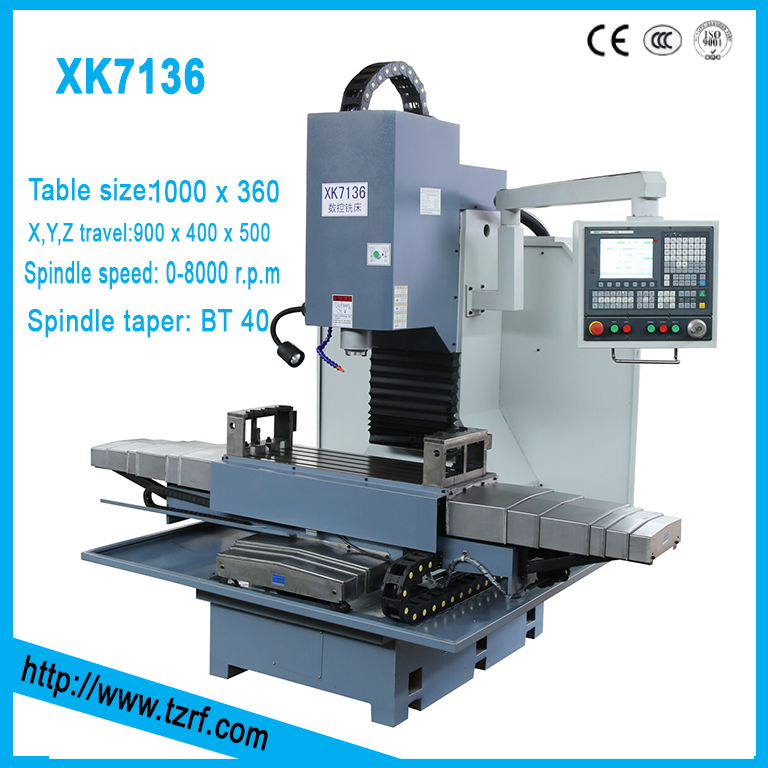

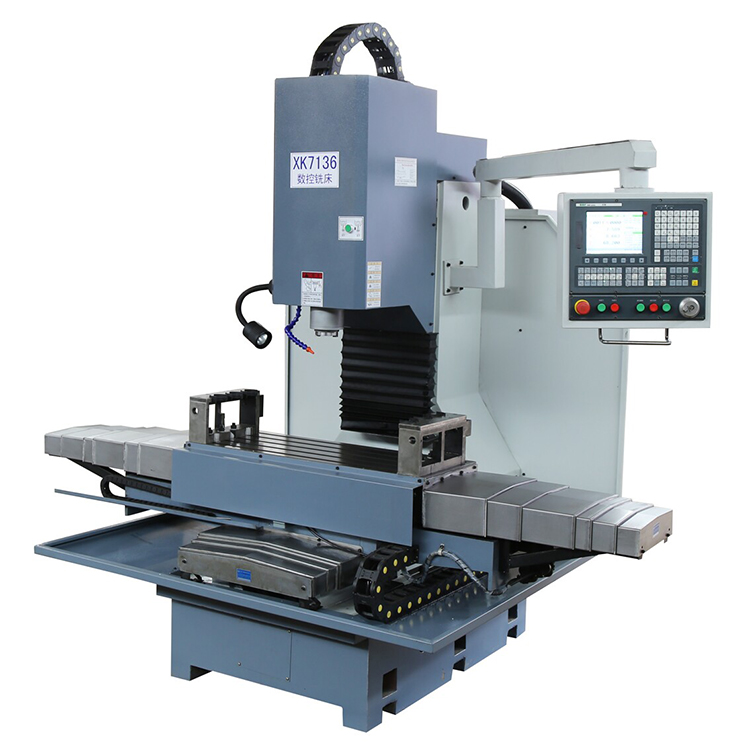

CNC Milling Machine XK7136

Home > CNC Milling Machine > CNC Milling Machine XK7136

Product Abstract:

Three-axis servo linkage automatic milling, xk7136 CNC milling machine

Product Description

●High-speed spindle unit,the frequency stepless speed regulation

●5# Turret Mill-head

●Suit for Small parts of the high-precision, highly efficient automatic processing

●HNC-18i/21MD, GSK-928MA/983M or KND-100Mi/1000MACNC system

Item Name	Unit	XK7136
worktable	mm	1000 x 360
X,Y,Z axis travel	mm	900 x 400 x 500
Max . Spindle speed	r.p.m	8000
Main Motor power	kw	5.5(servo)
Spindle taper		BT40
Distance from spindle center to column	mm	395
Distance from spindle nose to worktable	mm	600
X,Y axis Servo motor	N.m	7
Z axis Servo motor	N.m	15
Positioning accuracy	mm	0.02
Repeatability positioning accuracy	mm	0.01
Speed of power feed	Mm/min	2.5-3000
Machine weight	Kg	2650
Overall size	mm	2500 x 1970 x 2160
