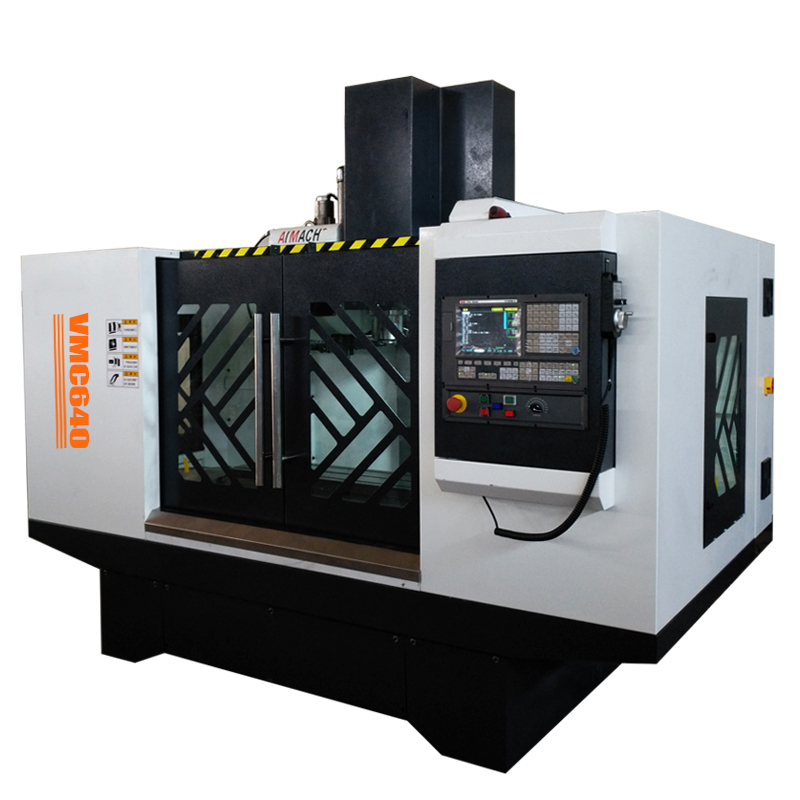

VMC640 CNC MACHINE CENTER

  • XK712 small CNC MILLING MACHINE
  • CNC Milling Machine XK7136
  • Small CNC Milling Machine XK7125
  • XK7130 CNC MILLING MACHINE
  • XK7140A CNC Milling Machine
  • VMC713 CNC CENTER MACHINE
  • XH7130L CNC Milling Machine
  • VMC713 CNC CENTER MACHINE
  • Horizontal Knee Type Milling Machines XK6132/6140
  • XK5032 Vertical CNC Milling Machine
  • VMC850  MILLING CENTER
  • VMC940 CNC MACHINE CENTER
  • VMC640 CNC MACHINE CENTER
  • XK7118 SMALL CNC MILLING MACHINE
  • XHL7132 CNC MILLING MACHINE
  • XH7132 Vertical  CNC Machining Center
  • VMC1060 Machine Center


Product Description



main features

1、high strength resin casting   2、3 axis linear ball screw                3、high speed spindle unit

4、spliting hand wheel      5、bamboo hat or disc type tool magazine(optional) 6、pneumatic  clamping tool system

7、automatic periodical lubrication     8、full guard structure              9、adjusting iron pad



technical specifications:



 specification

 VMC640

 Worktable size Length(mm)×Width(mm)

 1000×320

 T-SlotNo.-width(mm)–pitch(mm)

 3-16

 Maximum Loading weight(kg)

 200

 X axix travel(mm)

 600

 Y axis travel(mm)

 380

 Z axis travel(mm)

 450

 Distance from spindle nose to table surface(mm)

 100-550

 Distance from spindle center to column surface(mm)

 400

 Spindle taper

 BT40

 Maximum spindle speed(Rpm)

 8000

 Main motor power(kW)

 3.7

Feed power

 X axis torque(N.M)

 6

 Y axis torque(N.M)

 6

 Z axis torque(N.M)

 10

 Fast moving speed(m/min.)

 18

 Cutting feed speed(mm/min)

 1-5000

 Ball screw parameter(dia.mm/thread pitch mm)

 32/10

 Linear guide width X/Y/Z(mm)

 35

 accuracy

 Positioning accuracy(mm)

 0.015

 Repositioning accuracy(mm)

 0.01

 Tool Magazine

 BT40 bamboo hat BT40 (optional)

 12

 BT40manipulator BT40(optional)

 16

 Used air pressure Mpa

 0.6

 Machine weight kg

 2200



standard configuration

1、system:KND1000M-C(absolute value)

2、Tool magazine:BT40-12T bamboo hat tool magazine(optional);

         BT40-16T disc tool magazine(optional)

3、Pneumatic clamping tool

4、automatic electric oil pump

5、coolant system;

6、full guard(optional semi-guard)

7、three axis linear guide:35mm

8、3 axis ball screw:GD3210
