Product Name:

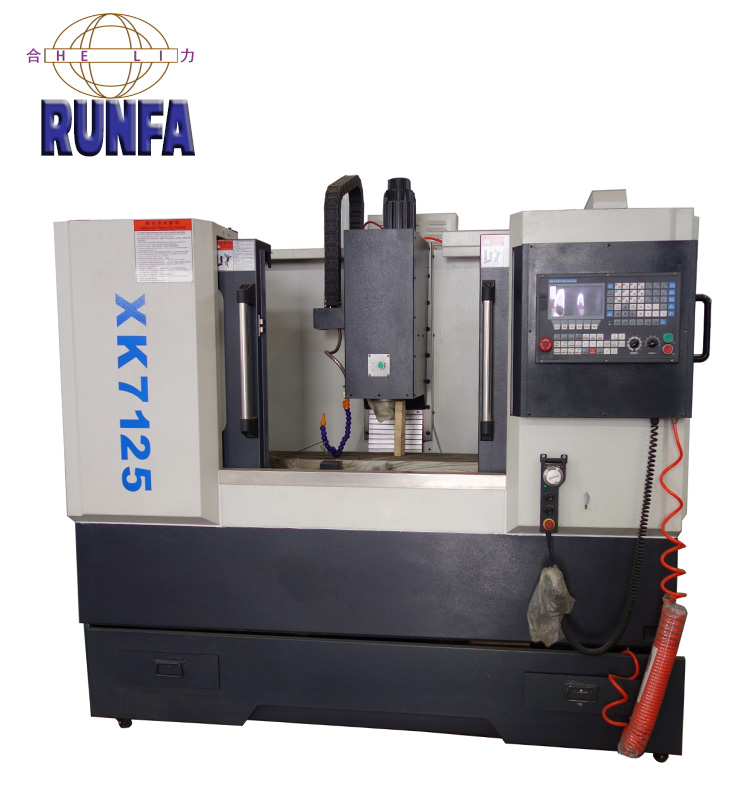

Small CNC Milling Machine XK7125
Model No.:
XK7125
Minimum Order:
1

Product Abstract:

XK7125 CNC MILLING MACHINE The feed shaft is controlled by X, Y and Z three dimensions, and spindle is driven by frequency power, which could realize one-time clamping upon various plates, boards, shells, cam, molds and etc. complex components, it can also complete drilling, milling, boring, expanding, reaming, tapping and etc. multiple processing; this machine is applied to produce middle & small batch of various components, especially for machining of complex and high-precision components.

Product Description

The system is equipped with complete & reliable interlock, safety protection, trouble diagnosis alarm and etc.

functions; it also has RS232 standard communication connection, which could have programming control & storage

CONFIG:1. Config: hard rail

System KND1000MA;
BT30 spindle taper;
Spindle unit,Maximum spindle speed:6000 r.p.m;
Automatic lubricating system;
Coolant system;
Working lamp;
FULL-guard;

Main technical parameters

Model	XK7125
Spindle Max. Rotating Speed	6000rmp
Main Motor Power	1.5 KW
Z Motor Torque	7.7N.m
X Motor Torque	6N.m
Y Motor Torque	6N.m
Spindle Taper	BT30
Worktable Size	900X250mm
Travel（Longitudinal X/Horizontal Y/Vertical Z）	450X230X300mm
Distance of Spindle Axis to Guideway Plane	330mm
Distance of Spindle End to Worktable	38-430mm
The Vertical Permissible Error of Spindle Axis to Worktable Plane	≤0.02mm
Positioning Accuracy	0.02mm
Repeated Positioning Accuracy	0.01mm
Overall Dimensions	1200 x 980 x 1750 mm
Machine Weight	1200 kg
Lubrication System	Motor Lubrication（Zhejiang）
