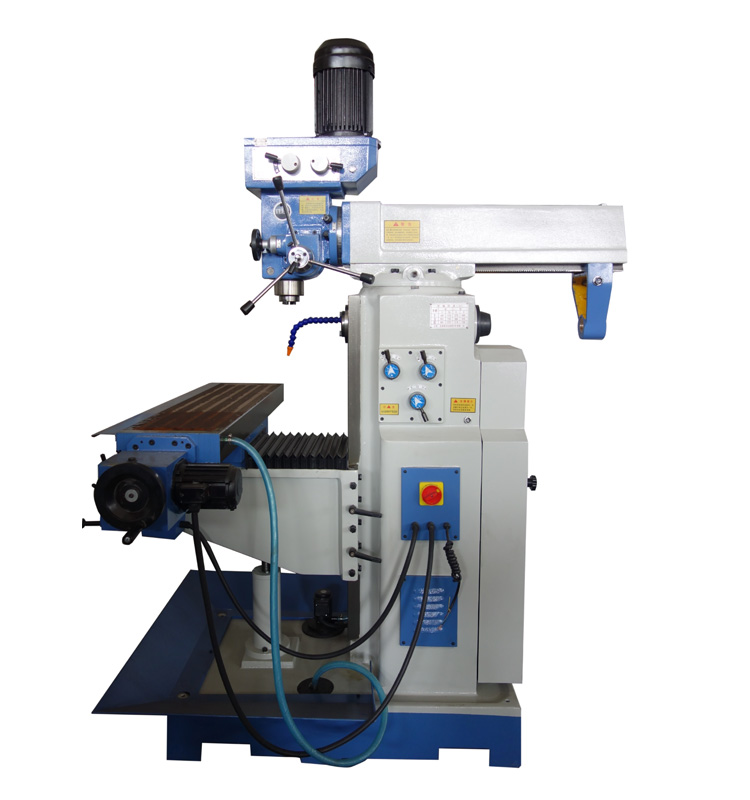

Drilling And Milling Machine ZX6350C
Product Name:
Drilling And Milling Machine ZX6350CModel No.:
ZX6350CMinimum Order:
1
Product Abstract:
Gear driven; X axis auto feed This model pass CE standard. ZX 6350C is a kind of economic-type drilling and milling machine, light and flexible, is used for mechanical maintenance, non-batch parts processing and components manufacturing.
- Product Description
The vertical head swivels to both sides (+-) 90
Standard accessories.
3-axis position indicator, 2 milling arbor (22, 27mm), collet set, drill chuck, mill chuck, reduction sleeve,
Work light, coolant.SPECIFICATION
UNIT
ZX6350C
Drilling capacity
mm
50
End milling capacity
mm
120
Vertical milling capacity
mm
25
Boring capacity
mm
120
Tapping capacity
mm
M16(vertical tap)
Distance between spindle nose and worktable
mm
100-480
Range of spindle speed
r.p.m
115-1750(vertical) 40-1300(horizontal)
Spindle travel
mm
120
Table size
mm
1200 x 280
Table travel
mm
660 x 210
Overall dimensions
mm
1420 x 1120 x 2095
Motor power
kw
(vertical)0.85/1.5 (horizontal) 2.2
N.W/G.W
kg
1200/1350
