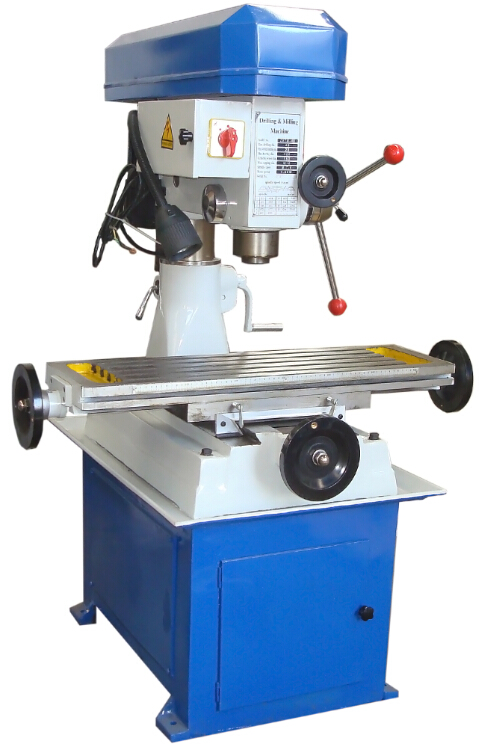

Drilling And Milling Machine

Home > Drilling And Milling > Drilling And Milling Machine

Product Abstract:

ZXTM40 small drilling and miling machine is very multifunctional machine.It is widely used for drilling,milling,grinding,borging,tapping and so on.

Product Description

SPECIFICATION	UNIT	ZXTM40
Drilling capacity	mm	40
End milling capacity	mm	100
Vertical milling capacity	mm	20
Boring capacity	mm	120
Tapping capacity	mm	M16
Distance between spindle nose and worktable	mm	120-550
Range of spindle speed	r.p.m	168-3160
Spindle travel	mm	120
Table size	mm	800 x 240
Table travel	mm	400 x 250
Overall dimensions	mm	1100 x 1050 x 1330
Motor power	kw	1.5
N.W/G.W	kg	410/460
