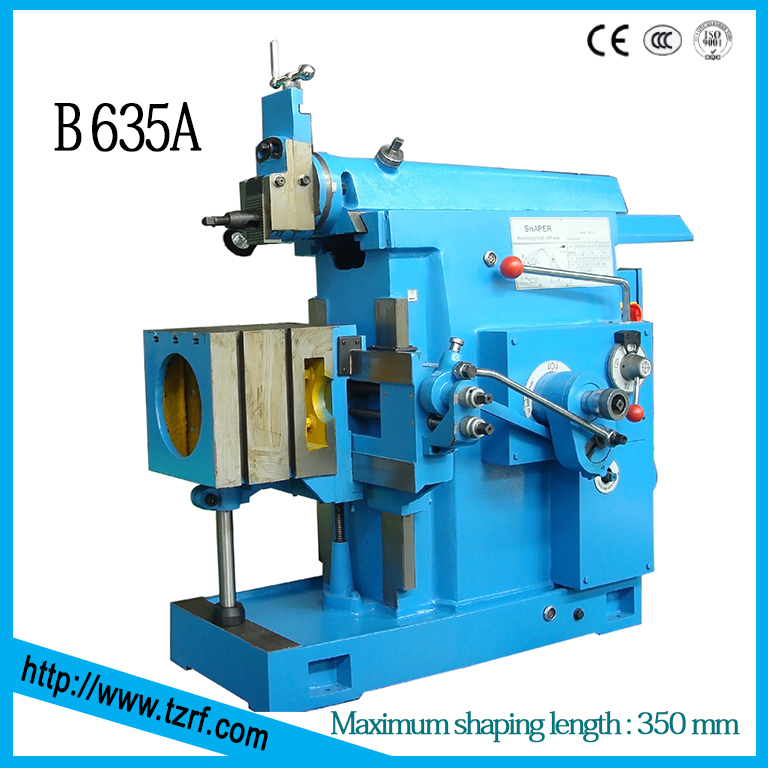

Model

B635A

Max. planing length

350mm

Max. distance between ram bottom and table surface

330mm

Max. worktable moving distance(horizontal)

400mm

Max. worktable moving distance(vertical)

270mm

Leading surface of the planer to bed out of the maximum distance

550mm

The max. displacement of the ram

170mm

Max. turning angle of the worktable (no vise)

±90°

Max. turning angle of the worktable (vise)

±55°

The turret maximum vertical travel

110mm

Ram reciprocating frequency per minute

32,50,80,125

Table feed amount
per reciprocating motion of ram

Wheeled round a tooth(vertical)

0.18mm

Wheeled round a tooth(horizontal)

0.21mm

Wheeled round 4 tooth(vertical)

0.73mm

Wheeled round 4 tooth(horizontal)

0.84mm

Motor power

1.5kw 1400r/min

Packing size

1530x930x1370mm

N.W./G.W.

1000/1200kg
