Shaping Machine BC6063/BC6066

Home > Shaping Machine > Shaping Machine BC6063/BC6066

Product Name:

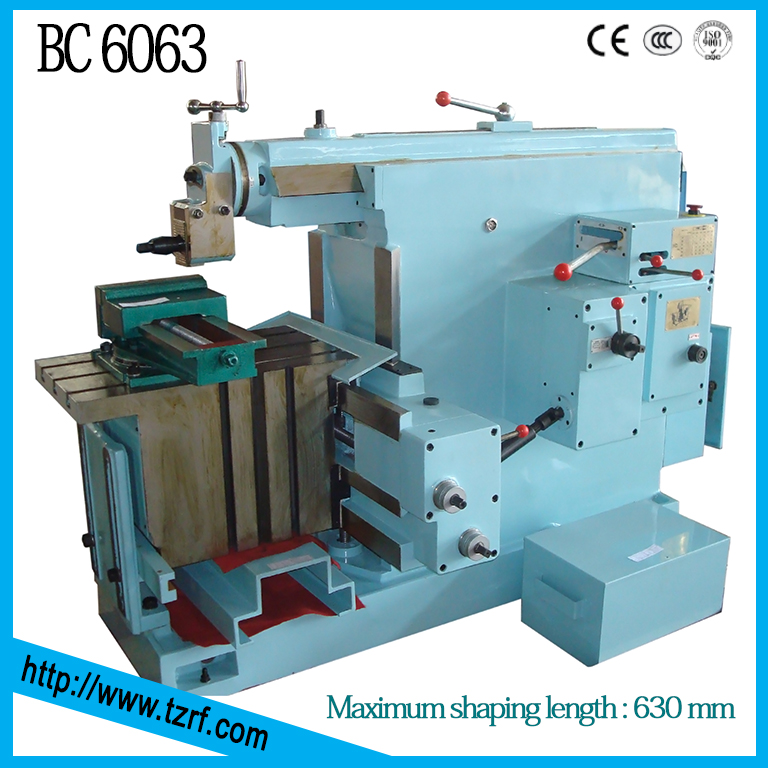

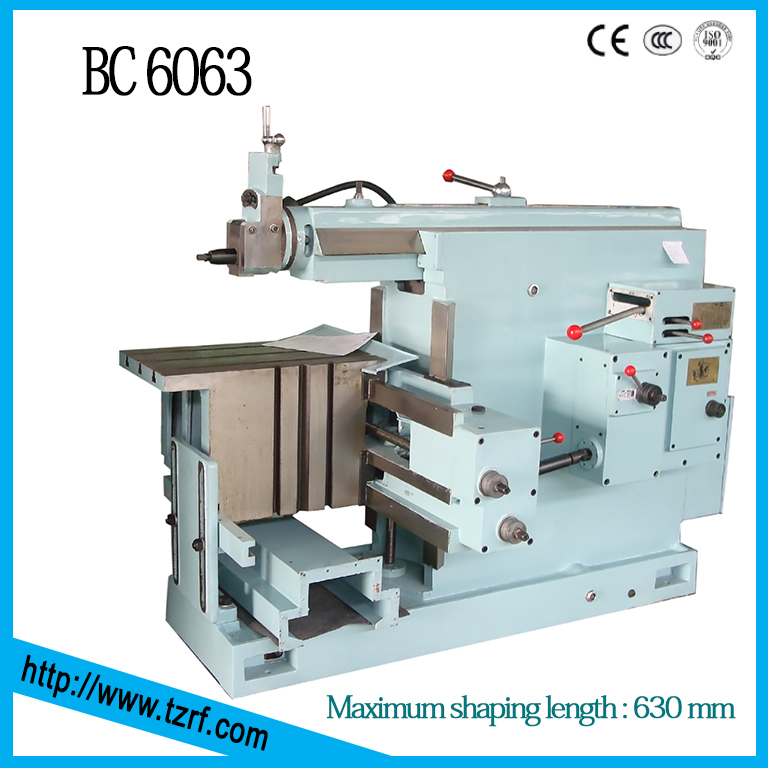

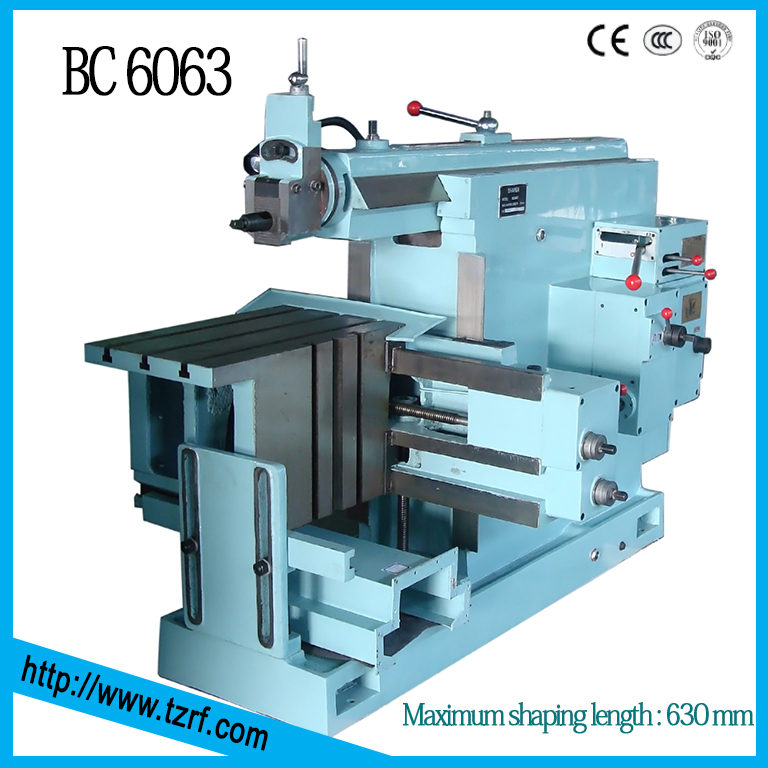

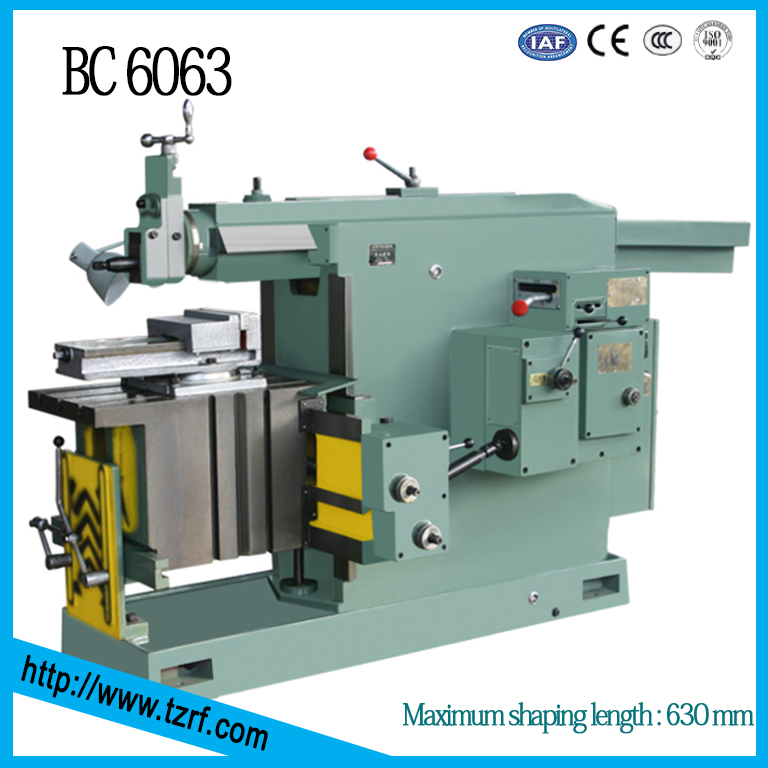

Shaping Machine BC6063/BC6066
Model No.:
BC6063/BC6066
Minimum Order:
1

Product Abstract:

BC6063/BC6066 Shaping machine is designed for cutting flat and formed surfaces on various kinds of small or medium sized workpiece. It can also be used to cut surfaces in special shape if equipped with a special vice or a dividing head and it is suitable for single piece and small batch production as well.

Product Description

Model		BC6063/BC6066
Maximum cutting length(mm)		630/660
Maximum distance from ram bottom to table surface(mm)		385
Maximum table horizontal travel(mm)		630
Maximum table vertical travel(mm)		360
Dimensions of table top surface(L×W)(mm)		630×400/660×400
Travel of tool head(mm)		120
Number of ram strokes per minute		14、20、28、40、56、80
Swivel of tool head(°)		±60°
Maximum size of tool shank(W×T)(mm)		20×30
Range of table power feed	horizontel	0.2~2.5
	vertical	0.08~1.00
Width of central T-slot of table(mm)		18
Power of mortr(kw)		3
Overall dimensions(L×W×H)(mm)		2342×1225×1480 2357×1225×1480
N.W/G.W(kg)		1750/1870 1800/1920
