Home > Shaping Machine > Shaper BC6085

Shaper BC6085

  • Small Shaping Machine
  • Shaper BC6050
  • Shaping Machine BC6063/BC6066
  • Shaper BC6085
  • Shaper BC60100
  • BY60100C

Product Abstract:

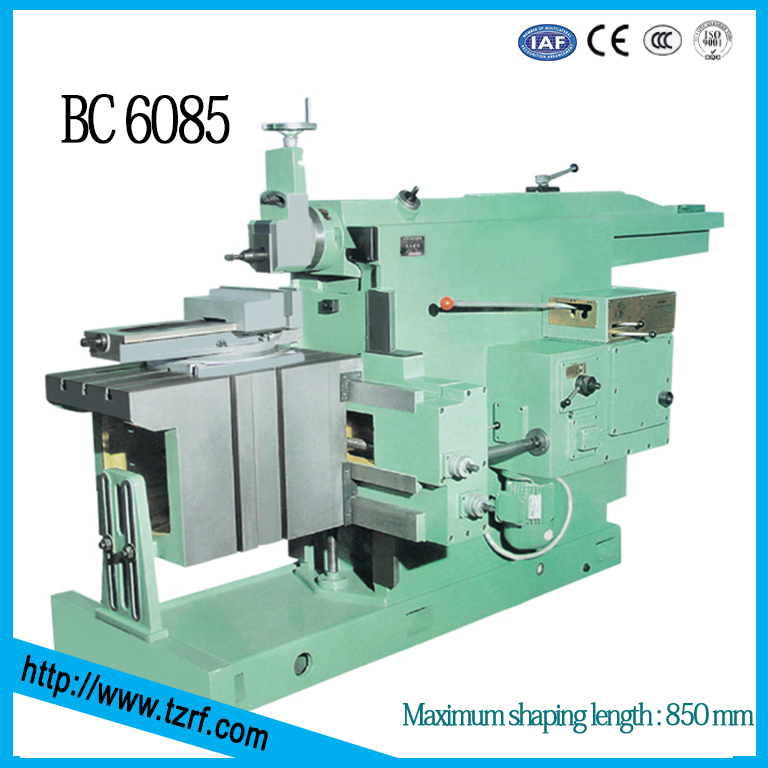

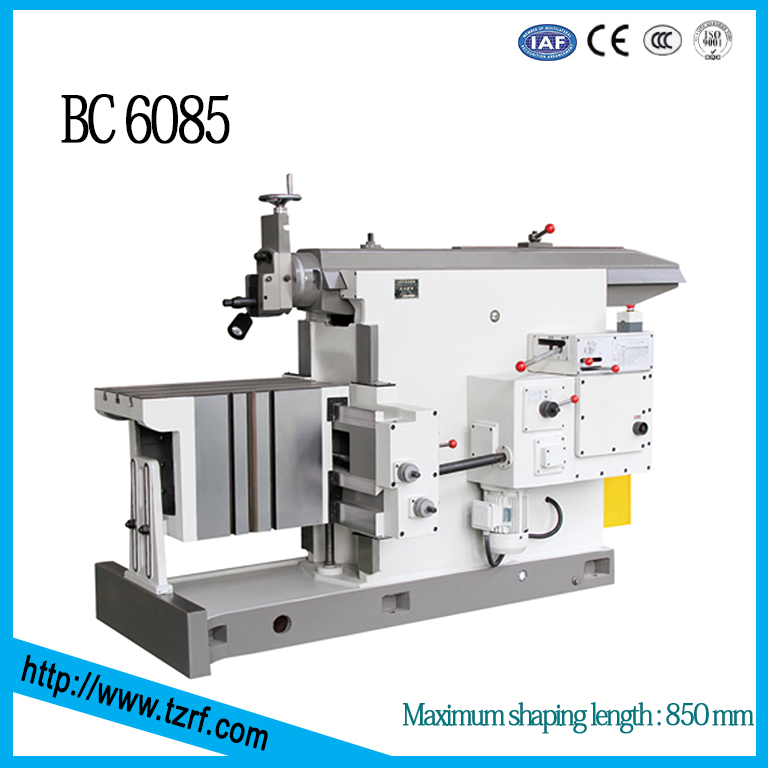

BC6085 Shaping machine is designed for cutting flat and formed surfaces on various kinds of small or medium sized workpiece. It can also be used to cut surfaces in special shape if equipped with a special vice or a dividing head and it is suitable for single piece and small batch production as well.


Product Description

Model

 BC6085

 Maximum cutting length(mmin)

 850

 Maximum distance from ram bottom to table surface(mm)

 400

 Maximum table horizontal travel(mm)

 710

 Maximum table vertical travel(mm)

 360

 Dimensions of table top surface(L×W)(mm)

 800×450

 Travel of tool head(mm)

 160

 Swivel of tool head(°)

 ±60°

 Number of ram strokes per minute

 17、24、35、50、70、100

 Range of table power feed

 horizontel(mm)

 0.25~3 12 steps

 vertical(mm)

 0.12~1.5 12steps

 Rapid feed of table

 horizontel(mm)

 1.2

 vertical(mm)

 0.58

 Width of central T-slot of table(mm)

 22

 Power of motor(kw)

 5.5

 Overall dimensions(L×W×H)(mm)

 2950×1325×1693

 Weight(kg)

 2940/3090
