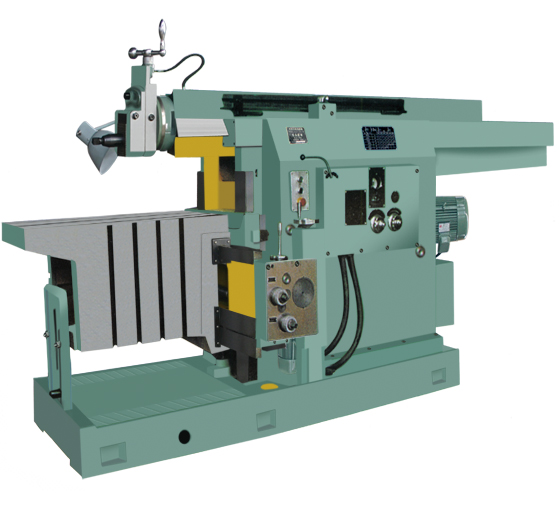

Model

 BY60100C

 Maximum cutting length(mmin)

 1000

 Cutting speed of ram(mm/min)

 3-44

 Distance from lower edge of ram to upper surface of table(mm)

 80-400

 Max.cutting force(N)

 28000

 Max.travel of tool head(mm)

 160

 Maximum size of tool shank(W×T)(mm)

 30×45

 Upper working surface of table(L×W)(mm)

 1000×500

 Width of central T-slot of table(mm)

 22

 Max.horizontal travel of table(mm)

 800

 Horizontal feed of table per recip rocating stroke of ram(stepless) (mm)

 0.25-5

 Main motor(kw)

 7.5

 Motor for rapid motion of table(kw)

 0.75

 Overall dimensions(L×W×H)(mm)

 3615×1574×1760

 N.W/G.W(kg)

 4200/4350
