Product Abstract:

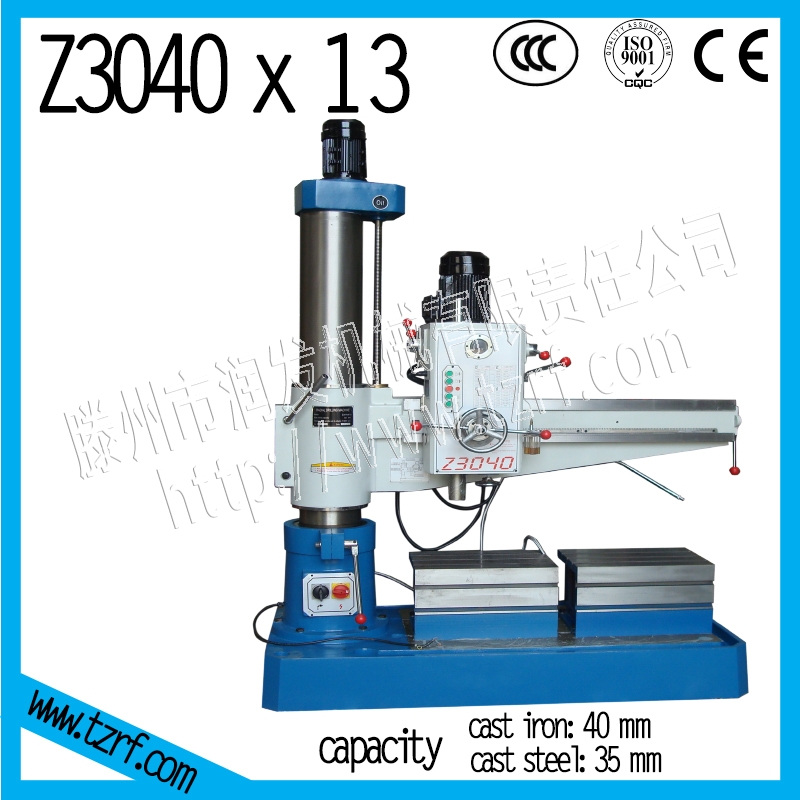

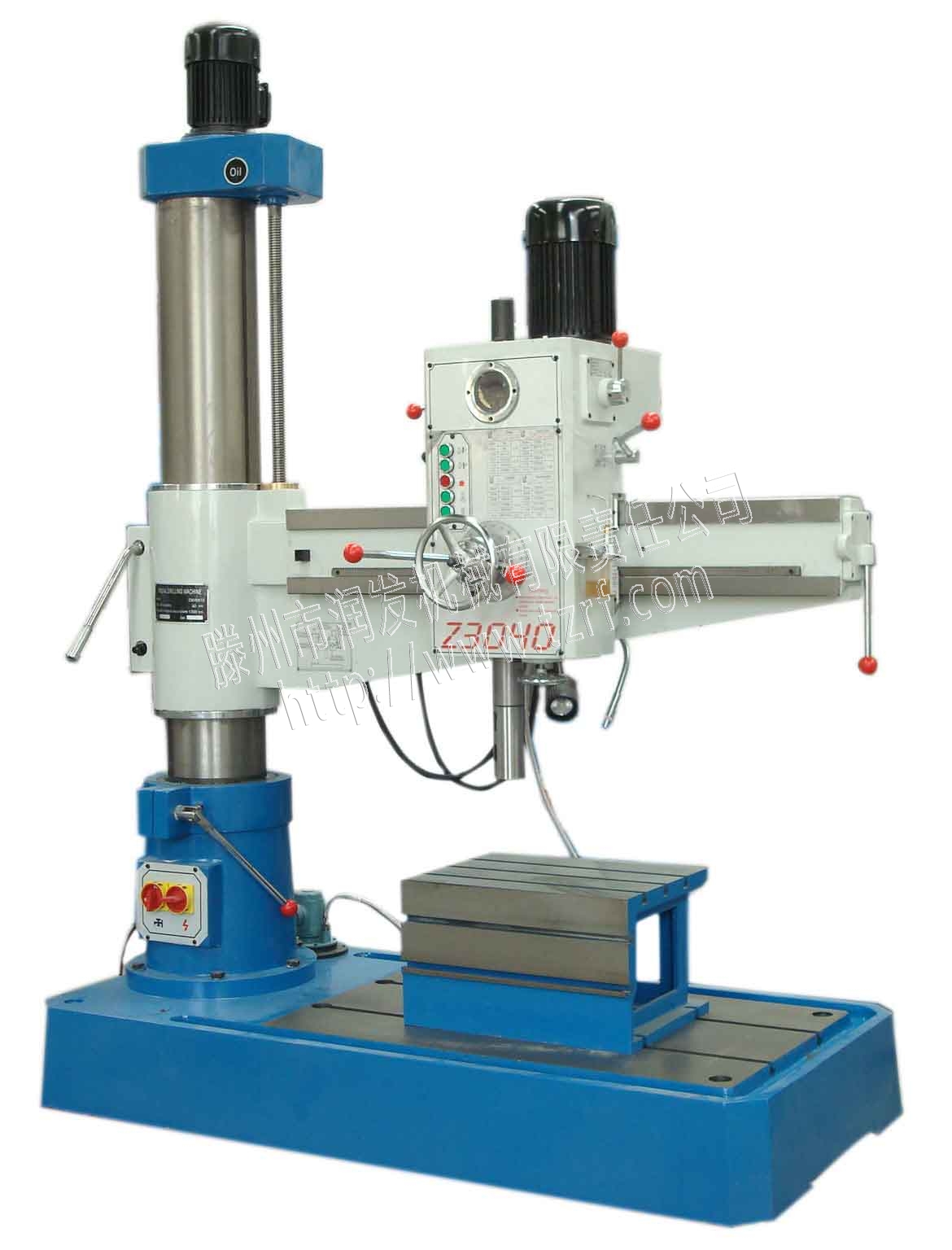

The radial drilling machines of Model Z3040X13 radial drill are our main products and sell well at home and abroad because of their best quality and stability. These machines can be used to implement many processes, such as drilling, expanding, reaming, grooving, tapping and etc. On the small and middle parts and even boring if the relevant equipment are available and they are regarded as the ideal machining equipments in the machinery and machine work industries.


Product Description

Main specification

Z3040 X 13

Max. drilling dia.

40 mm

Distance from spindle nose to table surface

260-1050 mm

Distance from spindle axis to column generatrix

360-1300 mm

Spindle travel

200 mm

Spindle taper

 MT 4

Range of spindle speeds

75~1200 r.p.m

Number of spindle speed

6 (steps)

Main motor power

2.2 KW

Lifting motor power

1.1 KW

Table size

545 x 380 x 310 mm

Overall dimensions

1820 x 840 x 2420 mm

Net weight

1550 kg
