Home > Radial Drilling Machine > Mechanical Radial Drilling Machine

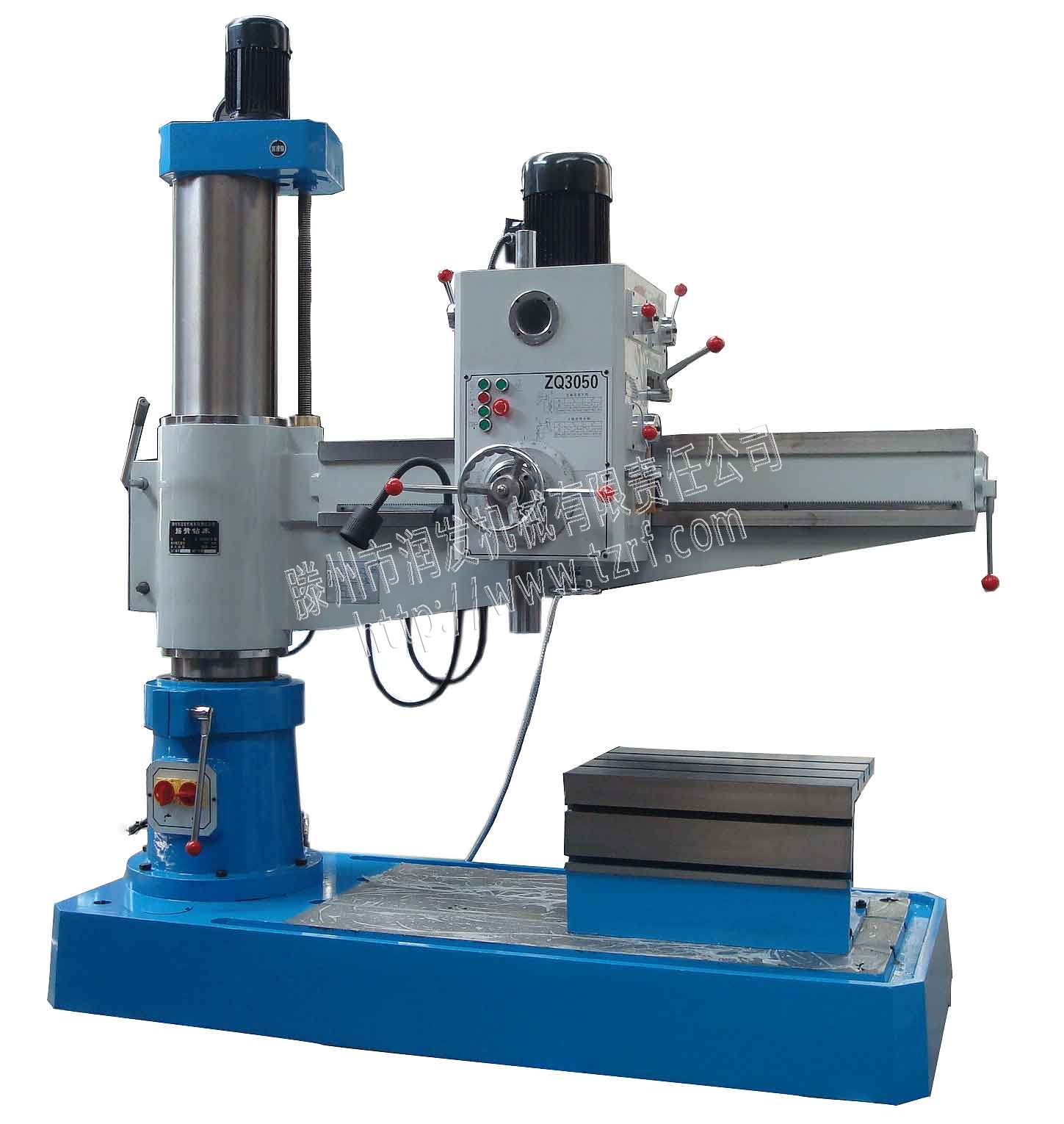

Mechanical Radial Drilling Machine
Product Name:
Mechanical Radial Drilling MachineModel No.:
Z3050X16Minimum Order:
1
Product Abstract:
The radial drilling machines of Model Z3050X16 are our main products and sell well at home and abroad because of their best quality and stability. These machines can be used to implement many processes, such as drilling, expanding, reaming, grooving, tapping and etc. On the small and middle parts and even boring if the relevant equipment are available and they are regarded as the ideal machining equipments in the machinery and machine work industries.
- Product Description
Main specification
Z3050 X 16 mechanical type
Max. drilling dia.
50 mm
Distance from spindle nose to table surface
285-1250 mm
Distance from spindle axis to column generatrix
360-1600 mm
Spindle travel
230 mm
Spindle taper
MT 5
Range of spindle speeds
78-1100 r.p.m
Number of spindle speed
6 step
Main motor power
4 KW
lifting motor power
1.5 KW
table size
650 x 475 x 370 mm
Overall dimensions
1950 x 810 x 2450 mm
Net weight
2000 kg
