Radial Drilling Machine

Home > Radial Drilling Machine > Radial Drilling Machine

Product Name:
Radial Drilling Machine
Model No.:
Z3063X20
Minimum Order:
1

Product Abstract:

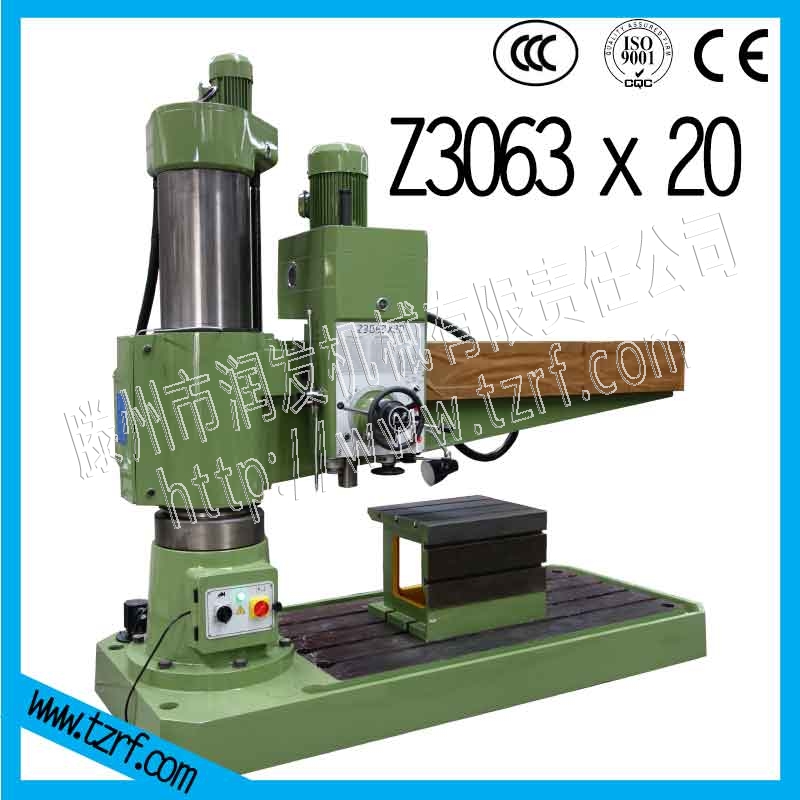

3063x20 Radial Drilling Machine is apply for the middle and big workpiece to drill hole,enlarge hole,reaming , mill surface,tapping and etc. It also can boring hole on the condition of good device. Z3063x20 radial drilling machine is improved on the based of new type machines. It is used widely.

Product Description

This machine have many features as follows:

Adopt hydraulic per-selection variable speed structure, it can save time.
The spindle have positive and reverse ,stop,variable speed, neutral position and etc. All this operation can controlled by one handle, easily to operate.
The spindle box,rocker arm,inner and outer column adopt diamond clamping structure with hydraulic drive. Clamping reliable.
The rocker arm guideway,the surface of outer column, the spindle,the spindle quill,the inner and outer column . All these parts are dealt by quenching. This technology can keep the machine have good stability and prolong the machine’s life.
Have prefect safety protection device and outer column’s protection.
It also adopt a series of effective methods to keep the durable precision and life.
This machine have perfect electrical device, so it can guarantee the user’s safety ,reliable.

Max. Drill diameter	63mm
Distance from spindle axis to column surface	350-2000mm
Traverse of spindle box	1650mm
Distance from spindle nose to table surface	320-1420mm
Lifting traverse of rocker arm	780mm
Lifting speed of rocker arm	0.02m/second
Rotary angle of rocker arm	360°
Spindle taper	MT5
Spindle speed range	25-2000r/min
Spindle speed step	16 step
Spindle feed range	0.04-3.2mm/r
Spindle feed step	16 step
Spindle traverse	315mm
Drill depth of dial per rotary	122.5mm
Max. Torsional strength of spindle	630Nm
Max. Feed force of spindle	23400N
Main motor power	4kw
Motor power of lifting	1.5kw
Motor power of spindle box,vertical column,hydraulic clamping	0.75kw
Coolant power	0.09kw
Net weight	4900kg
Overall size	2900x1130x3090mm

Packing List

No.	Item Name	Model	QTY	Remark
1	Radial Drilling machine	Z3063 X 20	1
2	Worktable	750 x 580 x500;500011A	1
3	Hexagon nut	M24;J11-1	4
4	T-slot bolt	400303	4
5	Washer	24;J51-1	4
6	Foot screw	M20X500;J23-8	6
7	Drift	3;SZSS81-1	1
8	Drift	4;SZSS81-1	1
9	Reduction sleeve	3x2;SZSS82-1	1
10	Reduction sleeve	4x3;SZSS82-1	1
11	Reduction sleeve	5x4;SZSS82-1	1
12	Oil injector	100;GB165-74	1
13	Nut	M20	6
14	Washer ring	ø20	6
15	Washer	4;SZSG91-2	5
16	Washer	6;SZSG91-2	5
17	Washer	8;SZSG91-2	5
18	Washer	10;SZSG91-2	5
19	O ring	7X1.9;G91-2	5
20	O ring	9X1.9;G51-2	5
21	O ring	11X1.9:G51-2	5
22	O ring	13X1.9;G51-3	5
23	Operation manual		1
24	Quality Certificate		1
25	Packing list		1
