Specifications

Unit

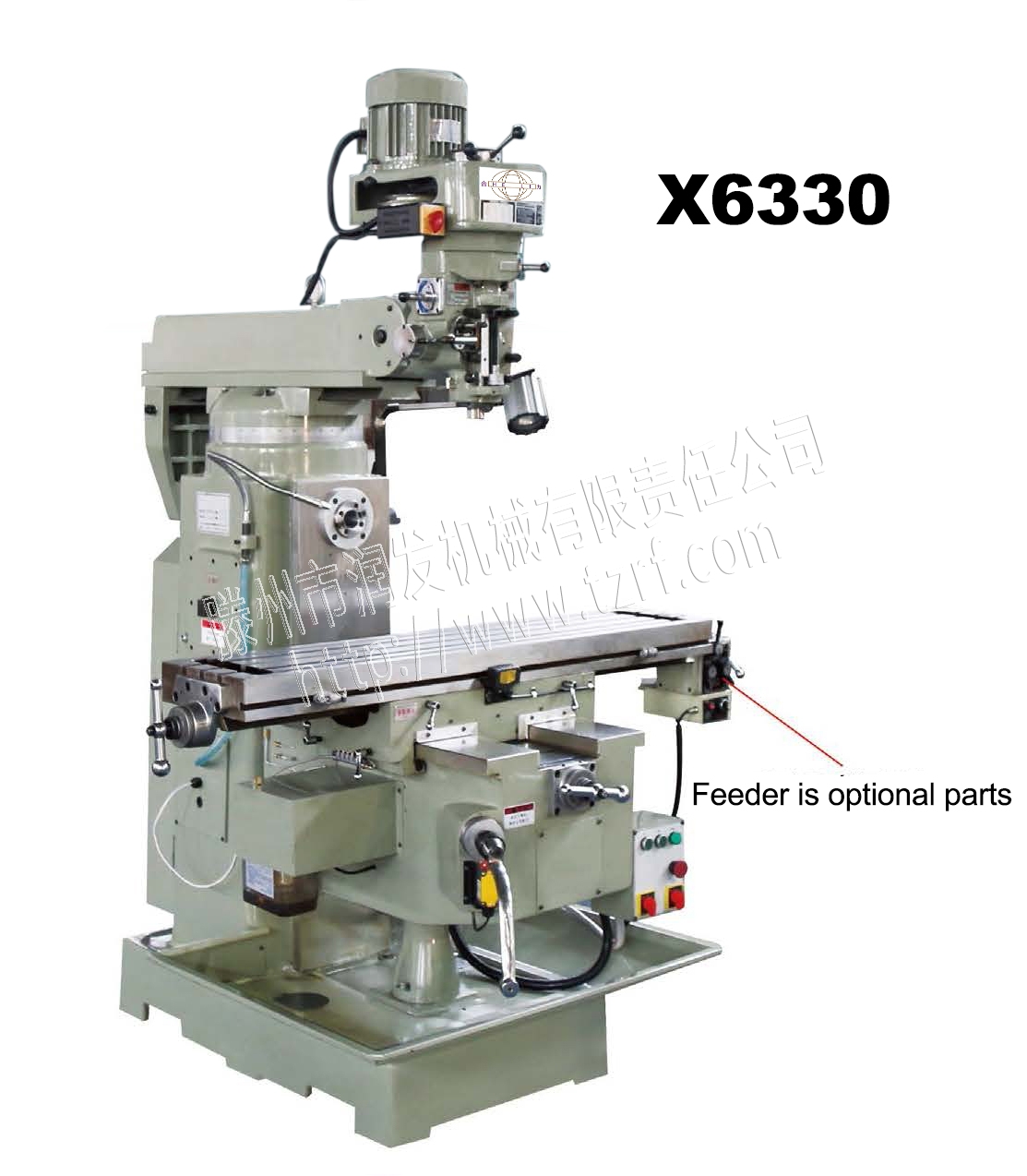

X6330

Remark:

Table size

mm

1370x305

Table travel(X/Y/Z)

mm

800x380x380

The feeder is optional parts

Spindle travel

mm

127

Spindle taper

NT40(V)

NT40(H)

Distance between horizontal nose and table surface

mm

0-380

Distance between spindle axis and ram surface

mm

210

Spindle speed range

r/min

60-3800(16 steps speeds)

40-1300(12 steps speeds)

T-slots(NO./width/pitch)

mm

3/16/65

Arm travel

mm

400

Main motor power

KW

3.7

3kw

Overall size

mm

1700 x 1600 x 2250

Net weight

kg

1500
