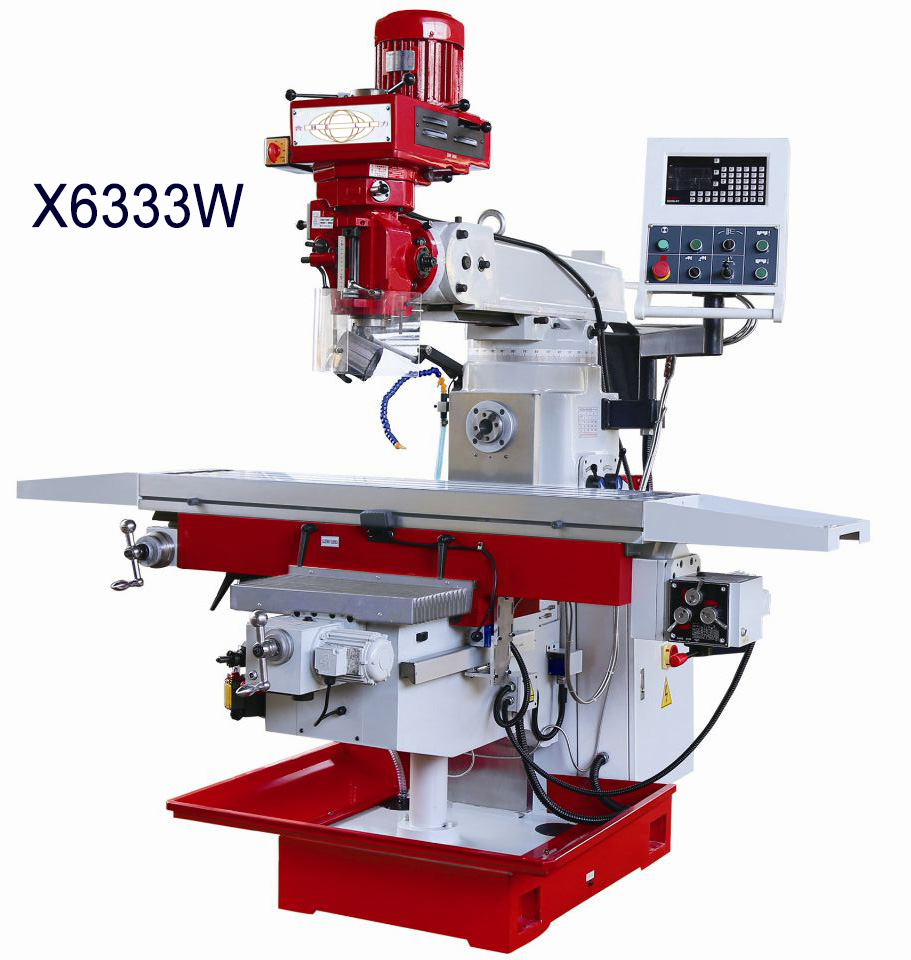

Universal Milling Machine

Product Description

1. the standard type includes the X,Y mechanical feeder,

2. the standard type includes the Z axis lifting motor

3. automatic collect lubricating system

4. complete electric cabinet

5.coolant system and water tray

Specifications	Unit	X6333W	Remark:
Table size	mm	1500x330
Table travel(X/Y/Z)	mm	1000x350x350
Rapid speed of worktable(X/Y/Z)	Mm/min	X:1000 Y:1000 Z:400
Spindle travel	mm	127
Max. drill diameter	Mm	25
Sleeve diameter	Mm	105
Spindle taper		NT40
Spindle taper		NT40
Distance between spindle nose and table surface	mm	180-540
Distance between spindle axis and ram surface	mm	300
Spindle speed range	r/min	66-4540(16 steps speeds)
		66-4540(16 steps speeds)
		40-1300(12 steps speeds)
T-slots(NO./width/pitch)	mm	3/18/85
Max.loading weight of workpiece	kg	600
Spindle head tilt angle	°	L-R ±90 F-R±45
Coolant pump motor power	w	40
Arm travel	mm	500
Main motor power	KW	3.7kw(V)
Main motor power	KW	3kw (H)
Overall size	mm	2400 x 1700 x 2350
Net weight	kg	1950
