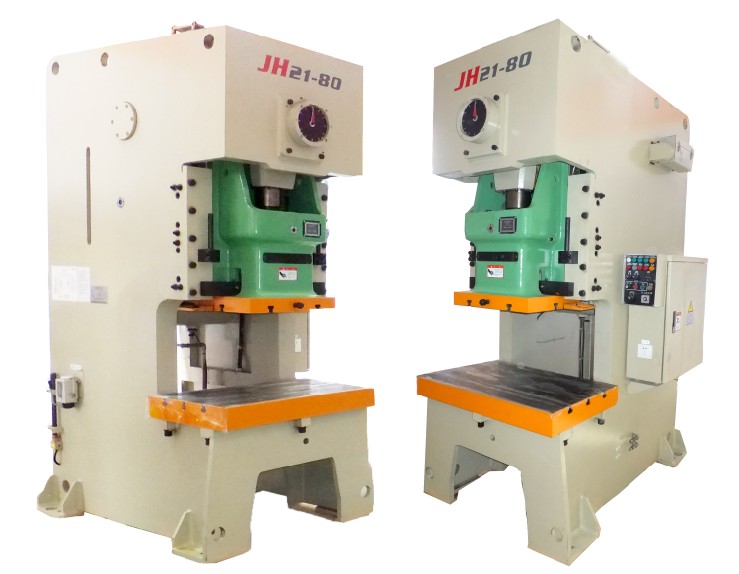

JH21 series of pneumatic friction clutch high-performance press

Home > Puch Press Machine > JH21 series of pneumatic friction clutch high-performance press

Product Name:
JH21 series of pneumatic friction clutch high-performance press
Model No.:
JH21-25/45/63/80/125/160/200/250/315/400
Minimum Order:
1

Product Abstract:

Use: 1. Suitable for various cold stamping process ：blanking, punching, molding, bending, pulling and stretching etc. 2. Widely used in the field of electrical appliances, vehicles, agricultural machinery, tractors, mining machinery, hardware and tools, machinery manufacturing, and other industrial

Product Description

Structure: 1. Welded body with steel plate ,higher stiffness and accuracy.

2.Adopts longitudinally placed crankshaft, compact structure and handsome

appearance.

3. Achieves die height adjustment electrically with digital display.

4.Slider ,square figure long guide with six frictions and bronze liner ,which is higher

precision.

5. Adopts combined frication clutch and brake ,engages stably and runs sensitively

6. Fixed with the slide,the mechanical overload protector will be damaged to protect

the machine from overloading.

7.Lift balance cylinder, makes the slider rod balance

Feature:

1. Slider can inch, stop emergency movement, operate safely

2.Safety duplex valve is adopted, and is marked with quick response, ensuring the reliable control

of the clutch

JH21 SERIES OF PNEUMATIC FRITION CLUTCH HIGH-PERFORMANCE PRESS
Type Specification		Unit	JH21-25	JH21-45	JH21-63	JH21-80	JH21-100	JH21-125	JH21-160	JH21-200	JH21-250	JH21-315	JH21-400
Nominal force		kN	250	450	630	800	1000	1250	1600	2000	2500	3150	4000
Stroke under nominal force		mm	3	4	4	4.5	5	5	6	6	6	6	6
Slide block stroke		mm	80	100	120	120	150	160	180	200	200	200	200
Number of stroke		次/min	100	80	70	60	50	50	45	40	40	30	25
Max die set height		mm	250	270	300	320	320	370	400	450	450	500	500
Die set height adjustment		mm	50	60	80	80	90	100	110	110	110	120	120
Distance from slide block center to the frame		mm	210	230	300	300	300	360	390	430	450	420	420
Workable dimensions(F·B×L·R)		mm	400x700	440x810	580*900	580*1000	580*1000	700*1100	760*1200	840*1400	880*1500	800*1400	800*1400
Dimensions of worktable		mm	Φ150	Φ160	Φ180	Φ180	Φ180	Φ160	Φ180	Φ200	Φ250	Φ280	Φ280
Thickness of bolster		mm	80	110	110	120	120	120	150	180	180	170	180
Dimensions of slide block(F·B×L·R)		mm	250*360	340*410	400*480	420*560	420*560	520*620	580*700	650*880	700*930	650*850	650*850
Dimensions of slide block(F·B×L·R)		mm	Φ40*60	Φ40*60	Φ50*80	Φ60*80	Φ60*80	Φ70*80	Φ70*100	Φ70*100	Φ70*100	Φ70*90	Φ70*90
Distance between columns of body		mm	450	550	560	640	640	640	660	820	950	920	960
Motor	Type		Y100L-4	Y132S-6	Y132S-6	Y132M-4	Y132M-4	Y160L-6	Y180L-6	Y200L₁-6	Y200L₂-6	Y250M-6	Y250M-6
Motor	Power	kw	3	5.5	5.5	7.5	7.5	11	15	18.5	22	30	37
Outlinedimension(F·B×L·R×H)		mm	1300x1100x2100	1400x1125x2350	1615* 1200 *2570	1915* 1385 *2820	21001390 3000	1900* 1300 *3300	20401360 3300	23701600 3900	2690* 1630 *3900	34001950 4100	38002200 4300
Net weight		kg	2700	3600	5500	7200	8500	9800	13200	19500	22000	25000	31000
