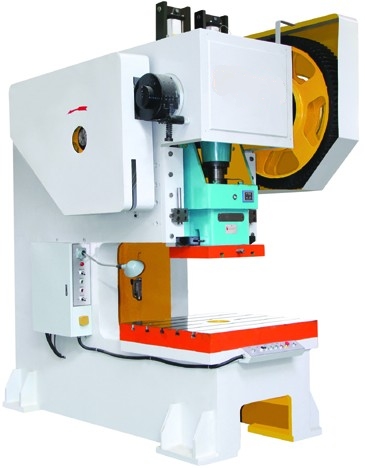

JC21 series fixed platform press
Product Name:
JC21 series fixed platform pressModel No.:
JC21-63/80/100/125/160/200/250/Minimum Order:
1
Product Abstract:
Use: 1. Suitable for various cold stamping process ：blanking, punching, molding, bending, pulling and stretching etc. 2. Widely used in electronic components, instruments and meters, vehicles, machinery, agricultural machinery ,hardware tools, and other industrial fields
- Product Description
Use: 1. Suitable for various cold stamping process ：blanking, punching, molding, bending,
pulling and stretching etc.
2. Widely used in electronic components, instruments and meters, vehicles,
machinery, agricultural machinery ,hardware tools, and other industrial fields.
Structure:1.Welded body with steel plate ,higher strength and stiffness.
2.C type body, convenient for the processing of the die with larger size material
3. Adopts horizontally placed crankshaft, easily maintain.
4. Rigid clutch, simple structure
5. Casting body, stable performance
6.Fixed with the slide,the overload protector will be damaged to protect the machine
from overloading.
Feature: 1.Higher strength and stiffness. economical presses.
2.Simple structure, excellent versatility,and easy to maintain and operate
JC21 SERIES FIXED PLATFORM PRESS
Type
Specification
Unit
JC21-63
JC21-80
JC21-100
JC21-125
JC21
-160
JC2-
200
JC2-
250
JC21-
315
JC21-
400
JC21-
500
JC21-
630
JC21-
800
Nominal force
kN
630
800
1000
1250
1600
2000
2500
3150
4000
5000
6300
8000
Stroke under nominal force
mm
4
5
5
6
6
6
6
6
6
10
10
10
Slide block stroke
mm
80
100
100
120
140
160
160
180
180
140
140
140
Number of stroke
times/min
50
50
40
38
40
36
35
35
35
35
35
30
Max die set height
mm
250
300
300
320
350
390
450
500
500
500
500
500
Die set height adjustment
mm
50
60
80
100
110
110
110
120
120
120
120
120
Distance from slide block center to the frame
mm
250
260
310
350
380
400
420
460
460
460
460
460
Workable dimensions(F·B×L·R)
mm
440*670
470*750
570*860
650*1000
710*
1120
740*1300
800*1400
880*
1500
880*
1500
880*
1500
880*
1500
880*1500
Dimensions of worktable
mm
Φ180
Φ180
Φ180
Φ200
Φ220
Φ180
Φ220
Φ250
Φ250
Φ250
Φ250
Φ250
Thickness of bolster
mm
70
80
90
110
130
160
160
180
200
220
240
250
Dimensions of slide block(F·B×L·R)
mm
240*280
260*300
360*450
420*520
440*560
580*760
600*780
700*930
700*930
700*930
700*930
700*930
Size of the handle hole(Diameter×Depth)
mm
Φ50*70
Φ60*80
Φ60*80
Φ60*80
Φ65*90
Φ65*
90
Φ70*
100
Φ70*100
Φ70*100
Φ70*100
Φ70*100
Φ80*100
Distance between columns of body
mm
320
360
460
520
640
740
740
820
840
840
840
760
Motor
Type
Y132S-4
Y132M-4
Y132M-4
Y160L-6
Y180L-6
Y200L1-6
Y200L2-6
Y225M-6
Y250M-6
Y280S-6
Y315S-6
Y315M-6
Power
Kw
5.5
5.5
7.5
11
15
18.5
22
30
37
45
75
90
Outline dimension(F·B×L·R×H)
mm
1440*
1100
*2430
1650*
1265
*2450
1820*1400
*2850
1900*1650
*2850
2040*
1765
*3200
2380*
1950
*
3520
2630*
2100
*
3750
2790*
2450
*4050
2850*
2550
*4100
2950*
2600
*4100
3050*
2650
*4200
3250*
2650
*4300
Net weight
kg
4150
5400
6420
9500
12500
16200
21000
27600
34260
37500
40400
50500
