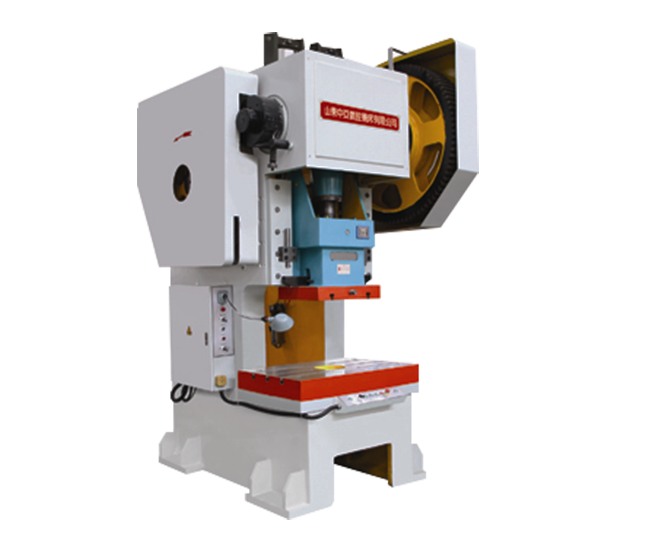

J21 series fixed platform press

  • JB23 series open back& inclinable press
  • JC21 series fixed platform press
  • J21 series fixed platform press
  • JC21S  series deep throat fixed platform press
  • JH21 series of pneumatic friction                    clutch high-performance press

Product Abstract:

Use: 1. Suitable for various cold stamping process :blanking, punching, molding, bending, pulling and stretching etc. 2. Widely used in electronic components, instruments and meters, vehicles, machinery, agricultural machinery ,hardware tools, and other industrial fields.


Product Description

Use: 1. Suitable for various cold stamping process :blanking, punching, molding, bending,

      pulling and stretching etc.

     2. Widely used in electronic components, instruments and meters, vehicles,

       machinery, agricultural machinery ,hardware tools, and other industrial fields.



Structure:1.Casting body, stable performance

        2.C type body, convenient for the processing of the die with larger size material

        3. Adopts horizontally placed crankshaft, easily maintain.

        4. Rigid clutch, simple structure

        5. Casting body, stable performance

        6.Fixed with the slide,the overload protector will be damaged to protect the machine

         from overloading.

Feature: 1.Higher strength and stiffness. economical presses.

       2.Simple structure, excellent versatility,and easy to maintain and operate

















J21 SERIES FIXED PLATFORM PRESS





Type

Specification

Unit

J21-80

J21-100

J21-125

J21-160

Nominal force

kN

800

1000

1250

1600

Stroke under nominal force

mm

5

5

6

6

Slide block stroke

mm

100

100

120

140

Number of stroke

次/min

50

40

38

40

Max die set height

mm

300

300

320

350

Die set height adjustment

mm

60

80

100

110

Distance from slide block center to the frame

mm

260

310

350

380

Workable dimensions(F·B×L·R)

mm

470*750

570*860

650*1000

710*1120

Dimensions of worktable

mm

Φ180

Φ180

Φ200

Φ220

Thickness of bolster

mm

80

90

110

130

Dimensions of slide block(F·B×L·R)

mm

260*300

360*450

420*520

440*560

Size of the handle hole(Diameter×Depth)

mm

Φ60*80

Φ60*80

Φ60*80

Φ65*90

Distance between columns of body

mm

300

420

520

640

Motor

Type



Y132S-4

Y132M-4

Y160L-6

Y180L-6

Power

kw

5.5

7.5

11

15



Outline dimension(F·B×L·R×H)

mm

1650*1265

*2450

1820*1400

*2670

1900*1650

*3400

2040*1765

*3200

Net weight

Kg

5200

6300

9800

13500
