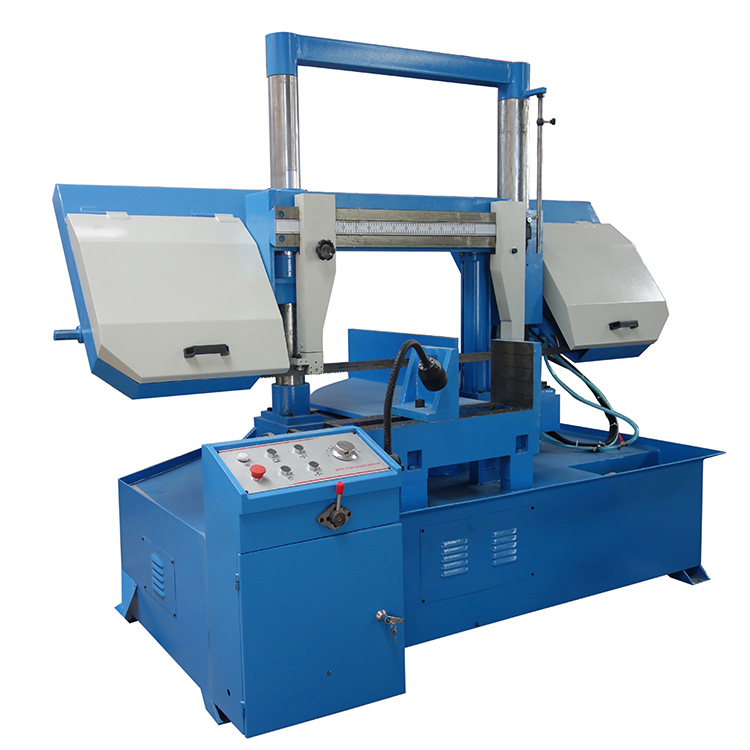

GT4240X Rotate Angle Band Saw
Product Name:
GT4240X Rotate Angle Band SawModel No.:
GT4240X
Product Abstract:
MAIN FEATURES ※ Double column structure vertical liftinghigh stability ※ Adjustable Angel 0 to 150,contronl easy ※ The hydraulic presuure contronls the sppedof saw stepless speed regulation ※ The camp of workpieces and hydraulic, contronl easy ※ Can make 3 hydraulictension saw blades per request
- Product Description
MAIN FEATURES
※Double column structure vertical liftinghigh stability
※Adjustable Angel 0 to 150,contronl easy
※The hydraulic presuure contronls the sppedof saw stepless speed regulation
※The camp of workpieces and hydraulic, contronl easy
※Can make 3 hydraulictension saw blades per request
MODEL NO
GT4228X
GT-4240X
Cutting capacity
280-280×280(90°)mm
400-400×400(90°)mm
Blade speed
27、45、69 mm/min
27、45、69 mm/min
Blade size
3505×27×0.9 mm
4650×34×1.1mm
Main motor power
2.2 kw
3 kw
Motor hydraulic
0.55 kw
0.75 kw
Coolant pump
0.04 kw
0.04 kw
Clamping type
Hydraulic
Hydraulic
Overall dimension
1900×1400×1500 mm
2300×1500×1600 mm
