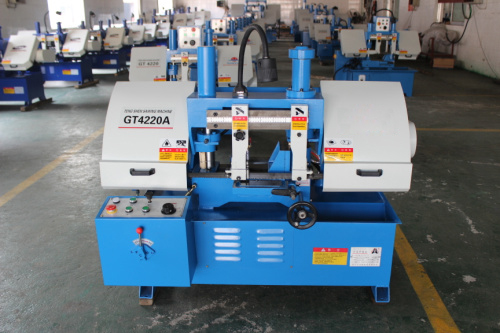

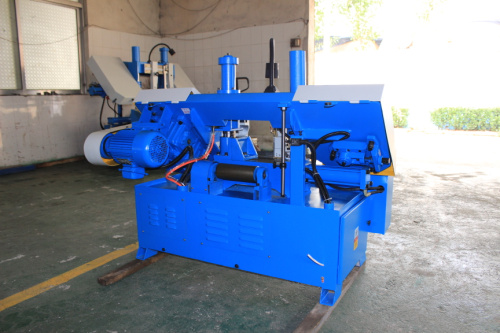

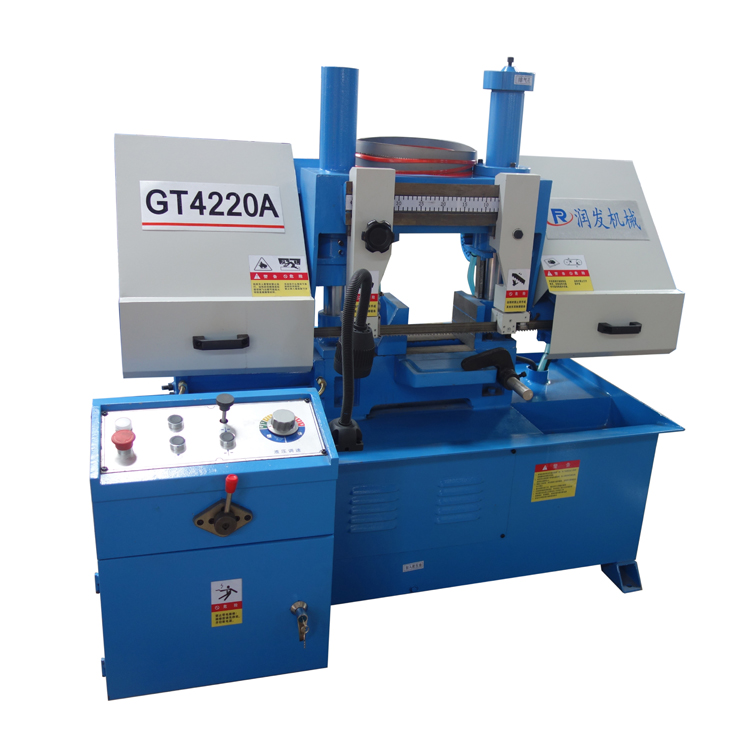

GT4220 Double Column Horizontal Band Saw
Product Name:
GT4220 Double Column Horizontal Band SawModel No.:
GT4220Minimum Order:
1
Product Abstract:
MAINFEATURES ※Doublecolumn structure vertical lifting high stability. ※Cutting speed adopts hydrauliccontrol,stepless speed regulation ※The clamping of workpiece adopts manual clamping, easy control ※Can make 3 options abouthydraulic clamping
- Product Description
GT4220
MAIN FEATURES:
With hydraulic system to control the cutting speed,variable speed
Useful guide system,to keel the blade can be use with long time
Double column structure,steady operations
Steady cutting,high accuracy
Manual clamping workpiece,easy operations.
Optional hydraulic clamping system with three directions.
MODEL NO
GT4220
Cutting capacity
200-400×200 mm
Blade size
2650×27×0.9 mm
Blade speed
27、45、69 mm/min
Clamping type
manual
Main motor power
1.5 kw
Hydraulic motor
0.55 kw
Coolant pump
0.04 kw
Overall dimension
1300×800×1100 mm
