Home > Band Sawing Machine > GS4240 Auto Band Saw

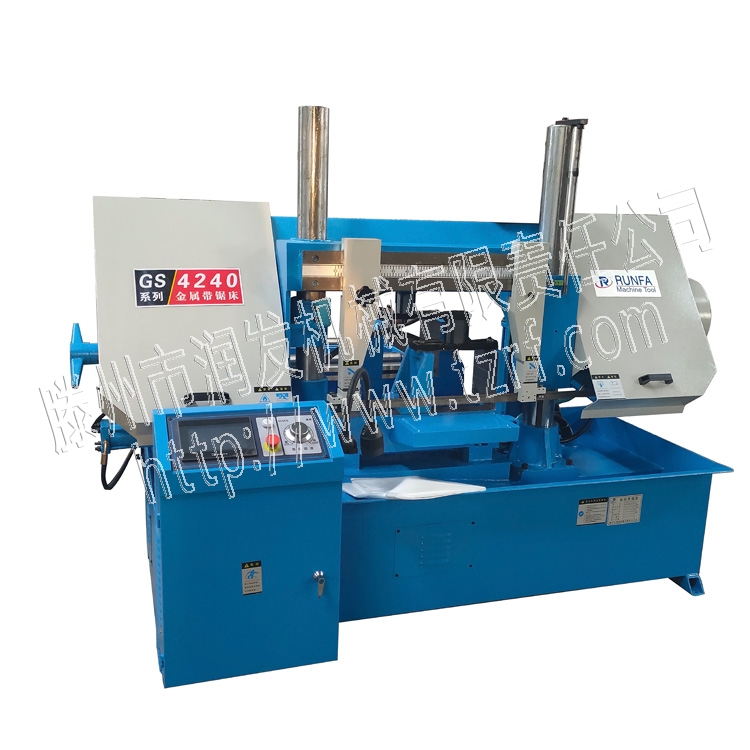

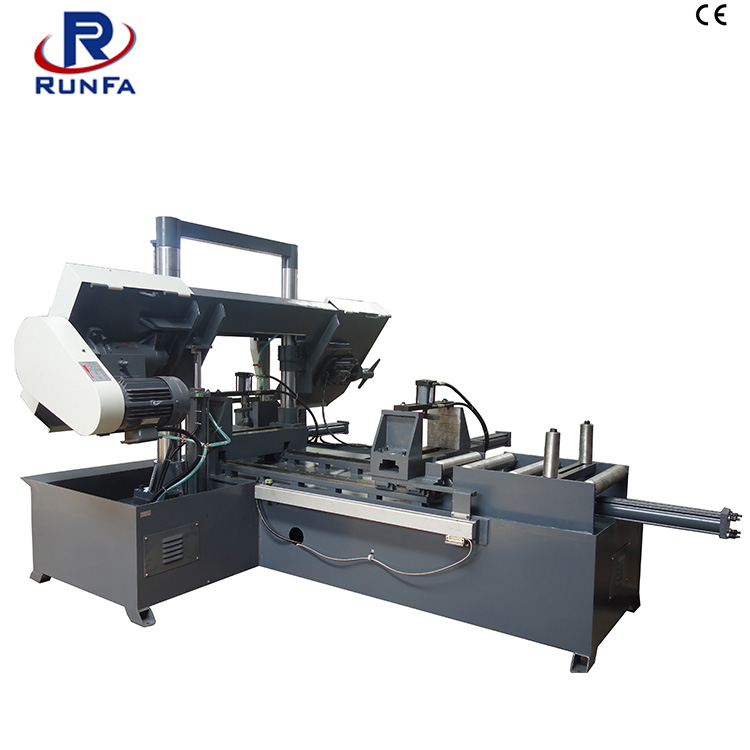

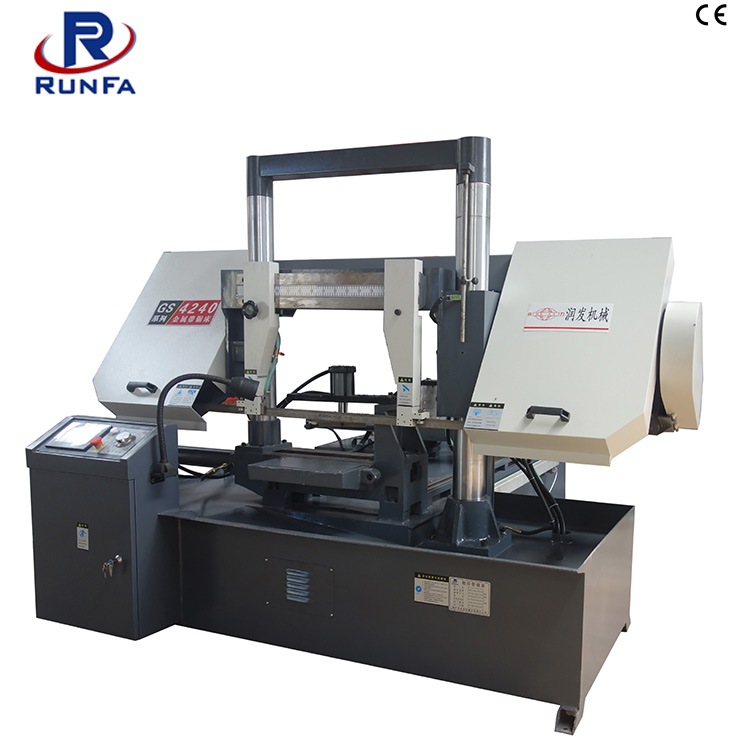

GS4240 Auto Band Saw

  • GT4235 Band Sawing Machine
  • Band Sawing Machine
  • Band Sawing Machine GT4228
  • GT4220 Double Column Horizontal Band Saw
  • GT4228 Band Saw
  • Swivel Band Saw
  • GT4240X Rotate Angle Band Saw
  • GH4250 Gantry Horizontal Band Saw Machine
  • BS-712N Metal Cutting Saw Machine, 7" band saw
  • GS4230 CNC Metal Band Saw
  • GS4235 CNC Metal Band Saw
  • GS4240 Auto Band Saw

Product Abstract:

Extremely rigid dual-column cast-iron construction PLC control for a fully automated sawing process Easy to use touchscreen monitor for easy and quick recording of saw parameters Hydraulic tool clamping included with standard equipment The feed unit's linear measuring system ensures long-term maximum accuracy Feed of the torsion-proof saw frame is infinitely variable via a hydraulic throttle valve Extra rigid, adjustable saw blade guide Hydraulic workpiece clamping with clamping pressure control and bundle vise are included in the standard equipment


Product Description

Extremely rigid dual-column cast-iron construction
PLC control for a fully automated sawing process
Easy to use touchscreen monitor for easy and quick recording of saw parameters
Hydraulic tool clamping included with standard equipment
The feed unit's linear measuring system ensures long-term maximum accuracy
Feed of the torsion-proof saw frame is infinitely variable via a hydraulic throttle valve
Extra rigid, adjustable saw blade guide
Hydraulic workpiece clamping with clamping pressure control and bundle vise are included in the standard equipment

Specifications

GS4240

GS4250

GS4260

Max Diameter(mm)

400-400W×400H

500-500W×500H

600-600W×600H

Saw Blade

size

5000×41×1.3mm

5800×41×1.3mm

6640×54×1.36mm

speed

27,45,69m/min

Guides

Carbide and bearing blade guides

Cleaning

Power wire brush & flood coolant

Tighten

manual

Feed travel

500mm

Feed precison

±0.2mm

Motor output

Blade

4kw

5.5kw

5.5kw

hydraulic

1.5kw

1.5kw

1.5kw

Coolant

0.125kw

0.125kw

0.125kw

Work Vise

hydraulic

Machine size(mm)

2400×2320×1800

2800×2400×2050

3100×2500×2100

Machine Weight(kg)

1800

2800

3000
