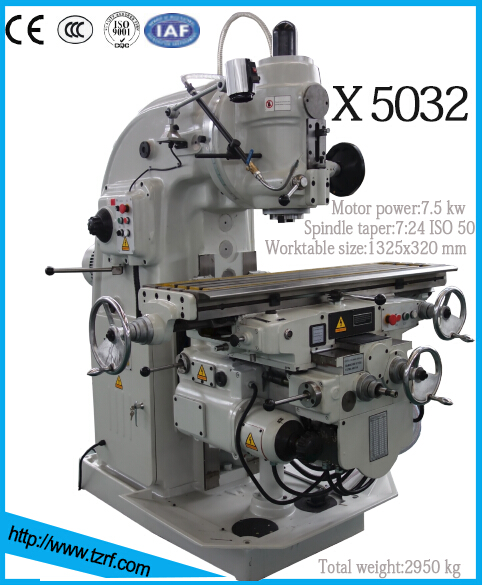

Vertical Knee-Type Milling Machine
Product Name:
Vertical Knee-Type Milling MachineModel No.:
X5032
Product Abstract:
X5032 vertical milling machine is one more powerful metal cutting machine,it has high rigidity,wide range of spindle feed also can bear a heavy burden.The spindle taper hole can install many kinds of cylindrical cutter,disc cutter,form cutter,end milling cutter and so on,it is suitable for maching all parts plane,inclined plane,groove,hole etc,it is one ideal maching equipment for machinery manufacturering,mould,apparatus,instrument,car and motor car.
- Product Description
SPECIFICATION
UNIT
X5032
Table size
mm
320 x 1325
T-slot(No./width/distance)
mm
3/18/70
Max. longitudinal travel(manual/automatic)
mm
700/680
Max. cross travel(manual/automatic)
mm
255/240
Max. vertical travel(manual/automatic)
mm
350/330
Rapid speed of worktable(X,Y,Z)
mm/min
2300/1540/770
Swivel angle of vertical milling head
°
±45
Spindle travel
mm
70
Distance between spindle centerline and plane of column guideway
mm
350
Spindle bore
mm
29
Spindle taper
--
7:24 ISO 50
Distance between spindle nose and plane of worktable
mm
60/410
Spindle speed step
--
18 steps
Range of spindle speed
r.p.m
30~1500
Feed range of worktable
--
18 steps
Main motor power
kw
7.5
Feed motor power
kw
2.2
Overall size
mm
2294 x1770 x 1904
N.W/G.W
kg
2950/3200
