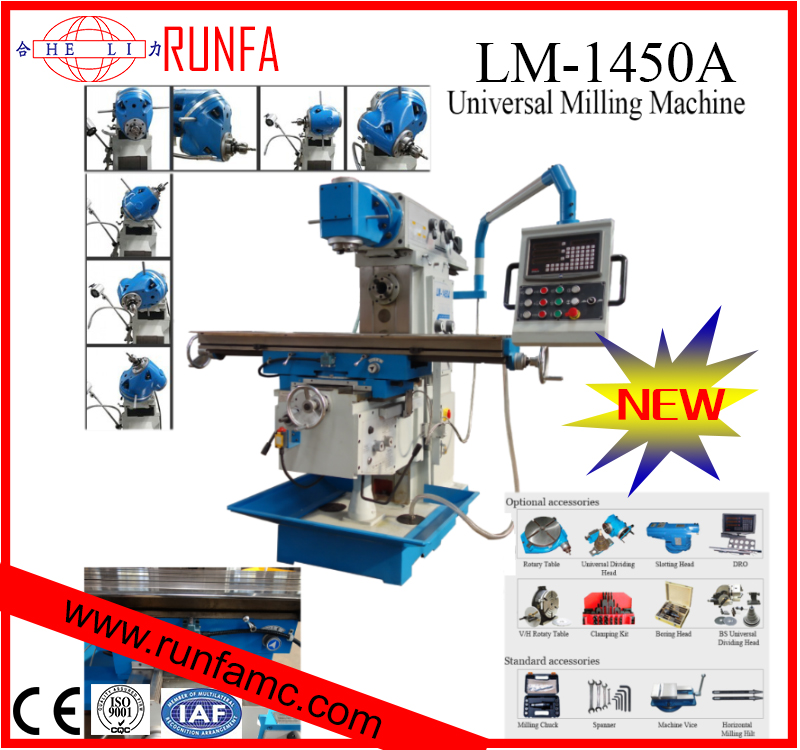

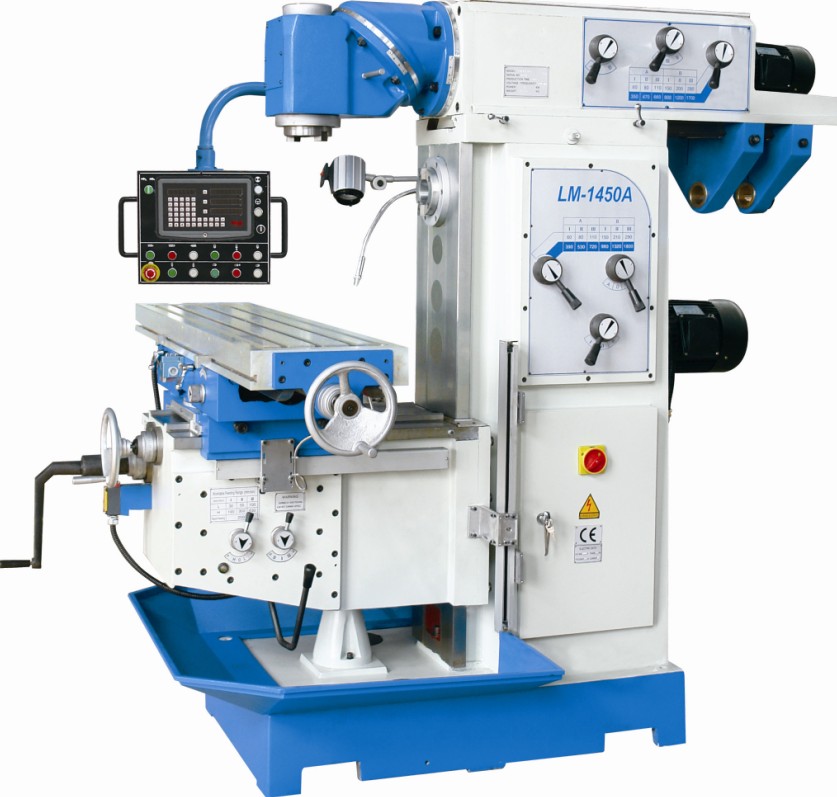

Universal Milling Machine LM-1450A

  • Universal Milling Machine X6332C
  • X6336 Universal Milling MACHINE
  • Radial Arm Milling Machine X6325
  • Universal Milling Machine XQ6232WA
  • Universal Milling Machine LM-1450A
  • Universal Milling Machine LM-1450A
  • Universal Milling Machine LM-1450A
  • Universal Milling Machine LM-1450A

Product Abstract:

LM-1450A universal swivel head milling machine is based on an increase in the XQ1450 installation of rotary table 45 degrees processing of a wide range of ,three-axis automatic feed large torque and strong power,2HP, fast-moving 2000mm/min


Product Description

rectangular table guideways with high stability
hardened and ground table surface
automatic feeds on X Y and Z  axis
arrow diagram refers special accessories

LM-1450A universal swivel head milling machine is based on an increase in the XQ1450 installation of rotary table 45 degrees processing of a wide range of ,three-axis automatic feed large torque and strong power,2HP, fast-moving 2000mm/min.



Specification



LM-1450A



Spindle taper



ISO50



Distance between sindle axis and milling machine guideway



505



Horizontal spindle center height





0-480



Table size



1500*360



Table travel



900*400*405



Main motor



4kw



Feed motor



1.5kw



Feeding speed



30/55/100/190/350/630/2000



Spindle speed



60-1800



Pack measure



2000*2000*2250



N.W/G.W



2650/2850kg
