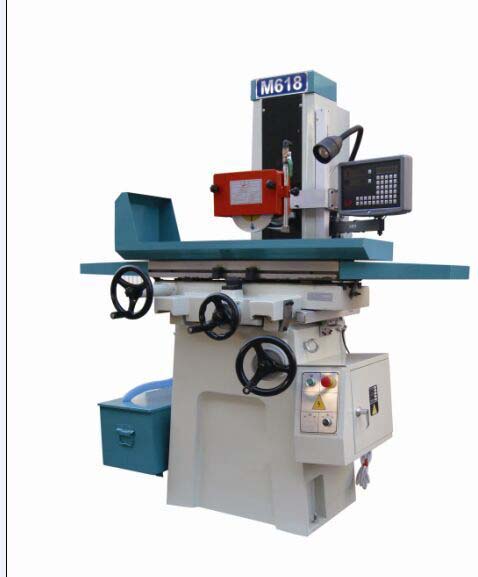

M618 Manual Surface Grinding Machine

  • 618S Surface Grinding Machine
  • M618 Manual Surface Grinding Machine


Product Description





Parameters

Unit

M618 / M618S

Working Surface of Table

mm

152x457

Max Table Travel

mm

483

Max Cross Travel

mm

178

Distance Between Table Surface and Spindle Cent

mm

400

Max Table Load

kgs

100

Tee Slot(NumberXwidlh)

mm

14x1

Table Speed

m/min

Manual

Crossfeed Handwheel

1grad

mm

0.02

1rev

2.5

Automatic Crossfeet of Saddle

mm

       -

Power Cross Feed

50HZ

mm

       -

60HZ

       -

Grinding Wheel

mm

180x13x31.75/32

Spindle Speed

50HZ

rpm

2850

60HZ

3420

Vertical Handwheel

1grad

mm

0.01

1rev

1.25

Spindle Motor

kw

1.1

Hydraulic Motor

kw

-

Dust Coliection Motor

kw

 -

Coolant Motor

w

40

Crossfeed Motor

w

      -

Floor Space

mm

1900x1300x1700

Net Weight

kgs

680

Gross Weight

kgs

780
