Hydraulic Forging Press

  • Four Column Slide Beam Hydraulic Press
  • HP Hydraulic Press Machine
  • HP-F Four Column Hydraulic Press
  • YQ32 Series Hydraulic Press
  • Y27 Series Four Column Hydraulic Press Machine
  • Hydraulic Forging Press

Product Abstract:

The free forging press is mainly used in various processes of free forging of metal materials, such as: upsetting, punching, reaming, staggering, rough turning, cutting, bending, drawing and so on.


Product Description

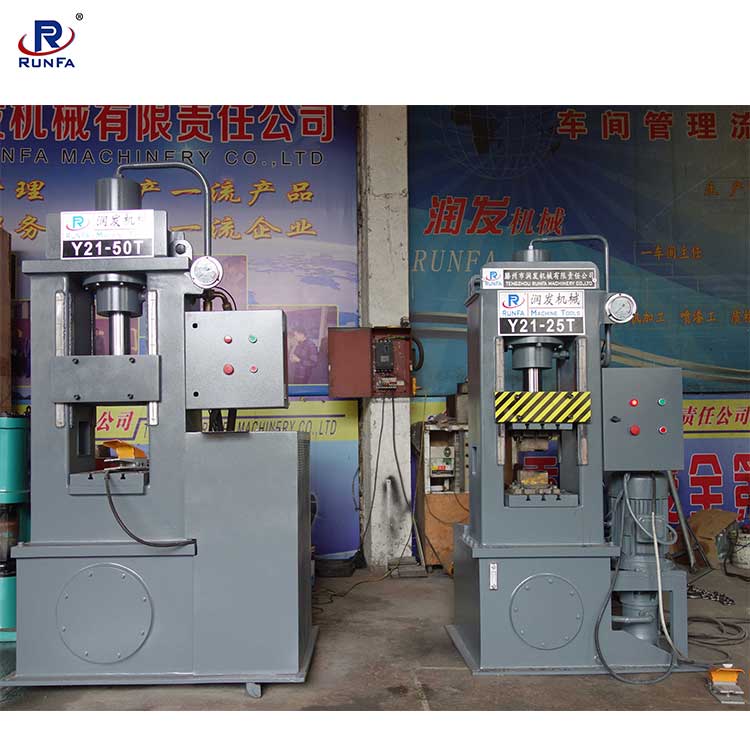

Y21 Series Forging Press Machine Specification

Item Name

Unit

Y21-25

Y21-50

Y21-80

Y21-125

Y21-160

Norminal Force

T

250

500

800

1250

1600

Slide Block travel

mm

300

300

300

300

300

Idle travel speed(fast down)

mm/s

≥40

≥50

≥80

≥100

≥110

Idle travel speed(slow down)

mm/s

≥15

≥20

≥60

≥80

≥100

Max.forging speed

mm/s

≤20

≤20

≤20

≤20

≤20

Idle travel fast up speed

mm/s

≥60

≥60

≥100

160

150

Max.forging area

mm

330*400

330*400

350*450

400*450

450*500

Worktable size

mm

300*320

300*350

350*400

380*450

420*480

Worktable height

mm

750±100

815±100

850

850

850

Max. Pressure

Mpa

≤25

≤25

≤25

≤25

≤25

Main motor power

KW

5.5

7.5

7.5

7.5

11

Overall Dimension

(L-R/F-R/H)

mm

1050

1200

1300

1450

1480

mm

800

800

900

900

1120

mm

1900

2200

2300

2350

2450

Machine weight

Kg

700

900

1900

2200

2800
