Home > Air Forging Hammer > C41-40KG > Single With Base Plate 40DB

Single With Base Plate 40DB

  • Pneuamtic Forging Hammer
  • Single Air Hammer Power Hammer
  • Single With Base Plate 40DB

Product Abstract:

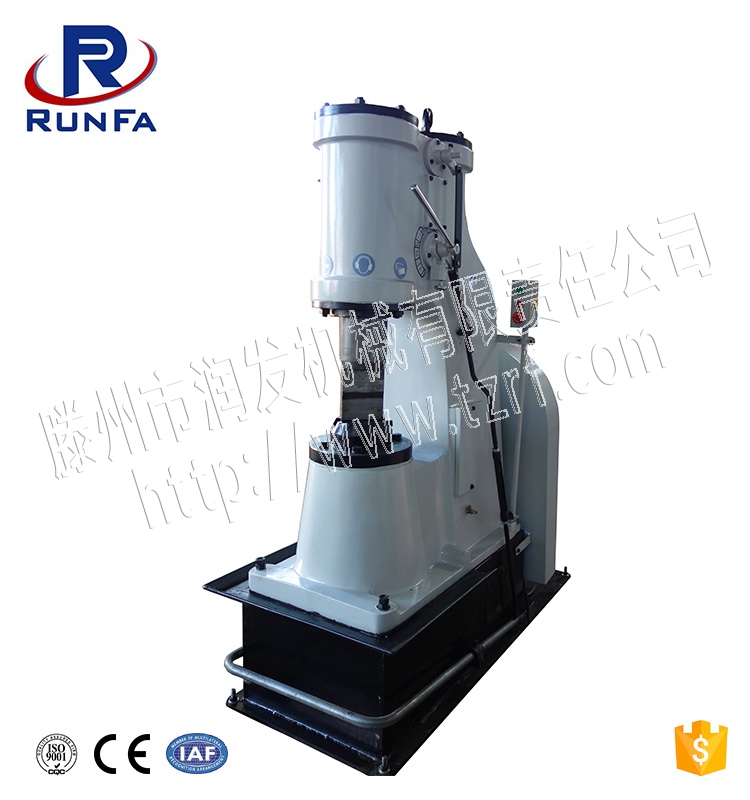

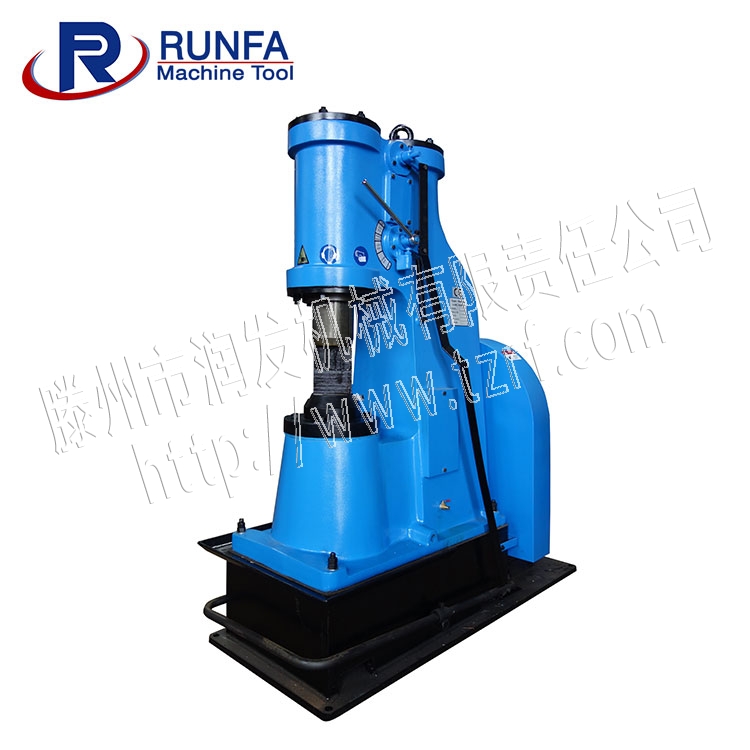

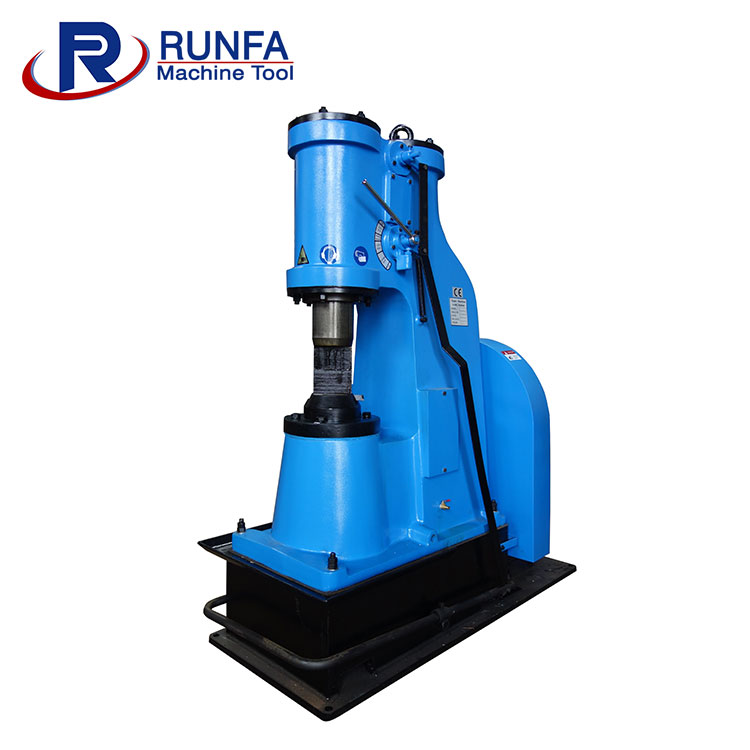

C41-40KG single with base plate power hammer original comes from the standard C41-40KGsingle hammer installed one base plate.It also includes the motor and cover of motor belt integerated on the base plate.It is easy to install and move.


Product Description

SPECIFICATION UNIT C41-40DB
Max. hit energy kj 0.53
Height of working area mm 245
Hit number  min-1 245
Dimension of top and bottom die surface(LxW) mm 120 x 50
Max. square steel can be forged mm 52 x52
Max. round steel can be forged(Diameter) mm ¢68
Motor  power kw 4
Speeds of motor r.p.m 1440
Base plate         weight kg 100
Total weight kg 980
Overall dimensions(L*W*H) mm 1220*600*1630
