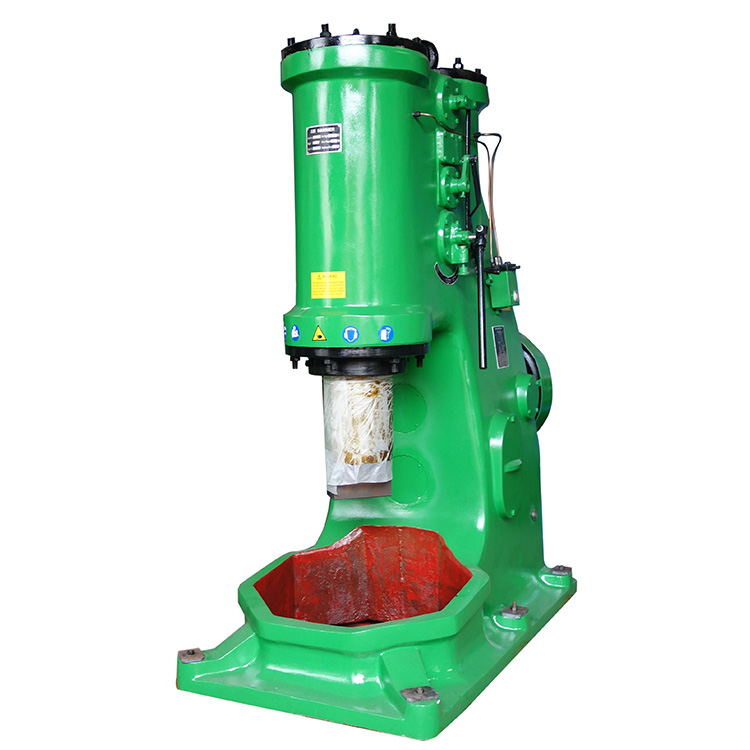

Pneumatic Forging Hammer
Product Name:
Pneumatic Forging HammerModel No.:
C41-250KGMinimum Order:
1
Product Abstract:
Pneumatic Forging Hammer is widely used with flat die or special die for various forging works, such as drawing-out, upsetting, punching, chiseling, forging, welding, bending and twisting. It is also used for open die forging bolster dies.
- Product Description
Technical Specifications
1
Weight of falling parts
Kg
250
2
Max. hit energy
Kj
5.6
3
Hit number
min -1
150
4
Distance from bottom die surface to bottom surface of lead
mm
450
5
Tup axis to hammer body
mm
430
6
Dimension of top die surface
mm
220 X 100
7
Dimension of bottom die surface
mm
220 X 100
8
Distance from botton die surface to base
mm
775
9
Motor
Type
--
180L-4
Rate power
kw
22/440V 3 PH
Speed
r.p.m
1470
10
Overall dimension
mm
2875 X 1405 X 2570
11
Anvil Weight
kg
~2950
12
Total Weight
kg
~8200
