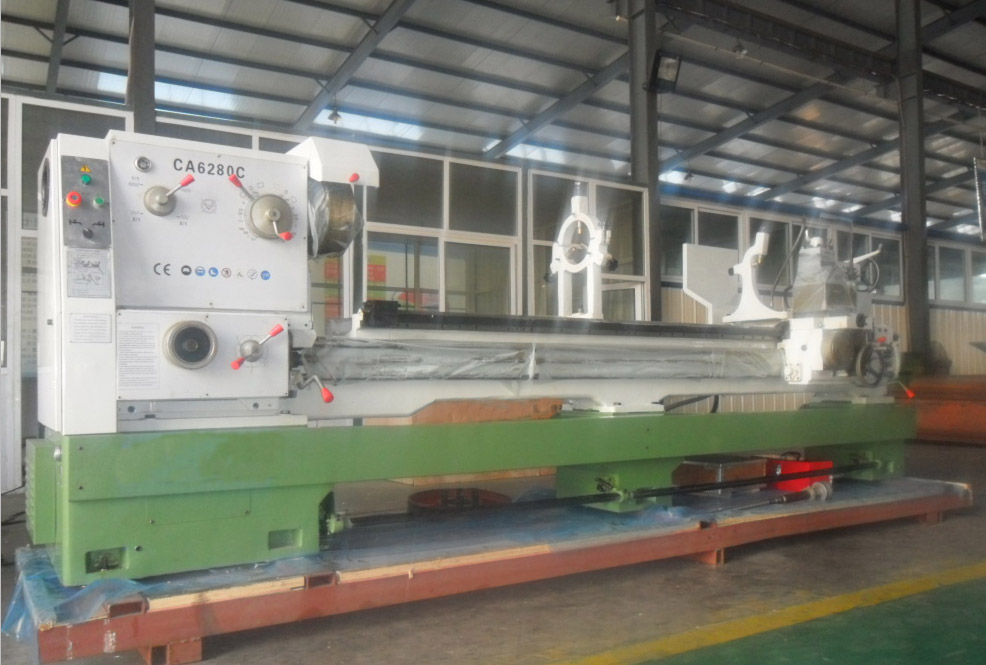

CA6180 CA6280 Universal Precision Metal Engine Gap bed Horizontal Lathe Machine

  • CA6180 CA6280 Universal Precision Metal Engine Gap bed Horizontal Lathe Machine

Product Abstract:

1 CA series of ordinary horizontal lathe is suitable for turning inside and outside cylindrical surface, conical surface and other rotating surface, turning various metric and inch, modulus and pitch thread, and can carry out the work of drilling and pulling oil groove, is a very versatile horizontal lathe, widely used in all kinds of shaft and disc parts of the batch processing. 2 This series of lathe bed width in general lathe, rail width 400mm has a high stiffness; guide rail surface is quenched by medium frequency, and is durable. 3 The machine operation is flexible and concentrated, the apron with fast moving mechanism. Using single handle vivid of the operation, pleasant and good.. 4 Machine tool structure rigidity and transmission rigidity are higher than the general lathe, the power utilization ratio is high, is suitable for the strong cutting. 5 Machine tool factory in strict accordance with the test procedures for testing, and make a strong cutting test, to ensure that the machine has a good accuracy and reliability.

Product Description

The main performance characteristics:
1 Machine tool bed box, headstock and tailstock, pallet etc. the binding surface between the manual scraping machine, after rigorous testing, the precision and stability

of the effective guarantee machine.
2 The machine adopts high strength cast iron, copper and chromium added special materials, bed width 400mm, bed rail quenching depth 4mm, effectively improve the

wear resistance and stability of machine tool.
3 Machine tool bed box lubricated system by the use of the lubrication of the pump for lubrication, for the hot weather, to ensure the cleanliness of the bed box and heat

dissipation characteristics, effectively extend the bearing and gear life.
4 Machine tool spindle using Wafangdian bearing, spindle hole diameter 52mm, the precision grinding machine tool gear, effectively improve the hardness, reduce machine

5 Machine tool uses the domestic brand screw, wire mother uses the high quality bronze alloy to guarantee the wear resistance and the accuracy retention.
6 Machine tool with four position high strength tool, shank size: 25x25mm.

Specifications CA6180    CA6180B   CA6180C CA6280 CA6280B CA6280C
Max. Swing over bed 800mm
Max. Swing over carriage 540mm
Max. swing in gap -- 1020mm
Effective gap length -- 210mm
Max. length of work piece 750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm
Width of bed 400mm
Section of turning tool 25x25mm
Spindle Spindle speeds 10-1400rpm/16-1400rpm(24steps)
Hole through spindle 52mm. (80mm). [105mm]
Spindle taper NO.6(MT6)(Φ90 1:20)[Φ113 1:20]
Feed Number of feeds 64 kinds(for each)
Range of metric threads(kinds) (1-192mm)44kinds
Range of inch threads(kinds) (2-24tpi)21kinds
Range of module threads(kinds) (0.25-48)Moduie39kinds
Range of  pitch threads(kinds) 1-96DP(37kinds)
Tailstock Max. tail stock spindle travel 150mm
Tail stock spindle diameter 75mm
Taper of tail stock spindle center hole NO.5(MT5)
Main motor 7.5KW(10HP)
Packing dimensions (L*W*Hmm) Overall dimensions for750mm 2550x1140x1750
Overall dimensions for1000mm 2700x1140x1750
 Overall dimensions for1500mm 3200x1140x1750
 Overall dimensions for2000mm 3700x1140x1750
 Overall dimensions for2200mm 4030x1140x1750
 Overall dimensions for3000mm 4850x1140x1750
 Overall dimensions for4000mm 5800x1140x1750
Weight (kg) Length G.W  N.W.
Weight for 750mm 2520  2400
Weight for 1000mm 2720  2560
Weight for 1500mm 2980  2800
Weight for 2000mm 3260  3087
Weight for 2200mm 3490  3287
Weight for 3000mm 4200  3887
Weight for 4000mm 4850  4500
