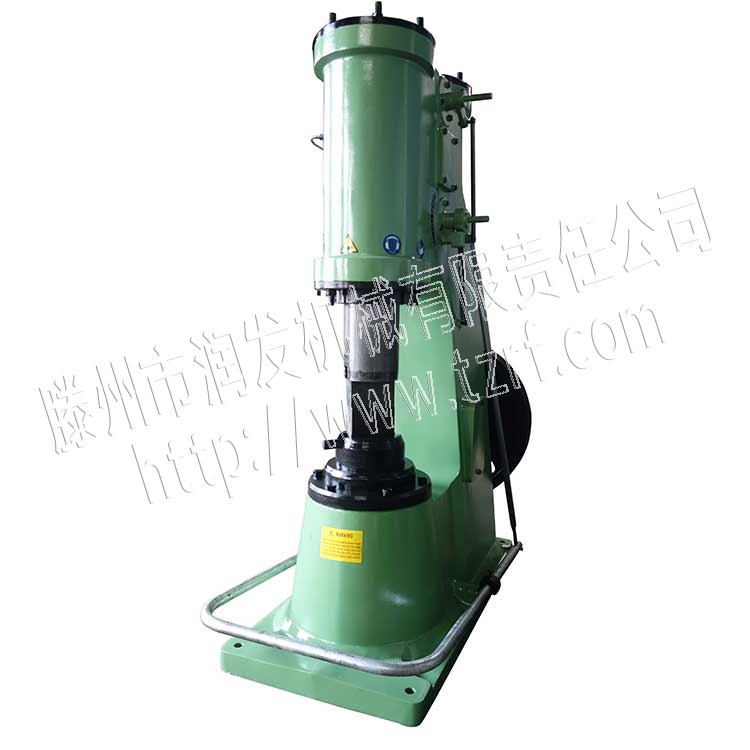

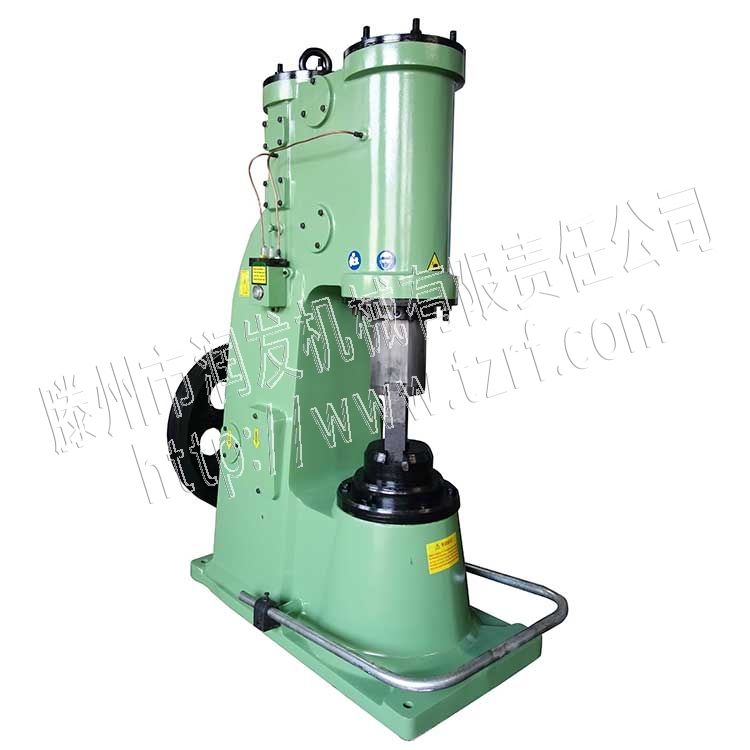

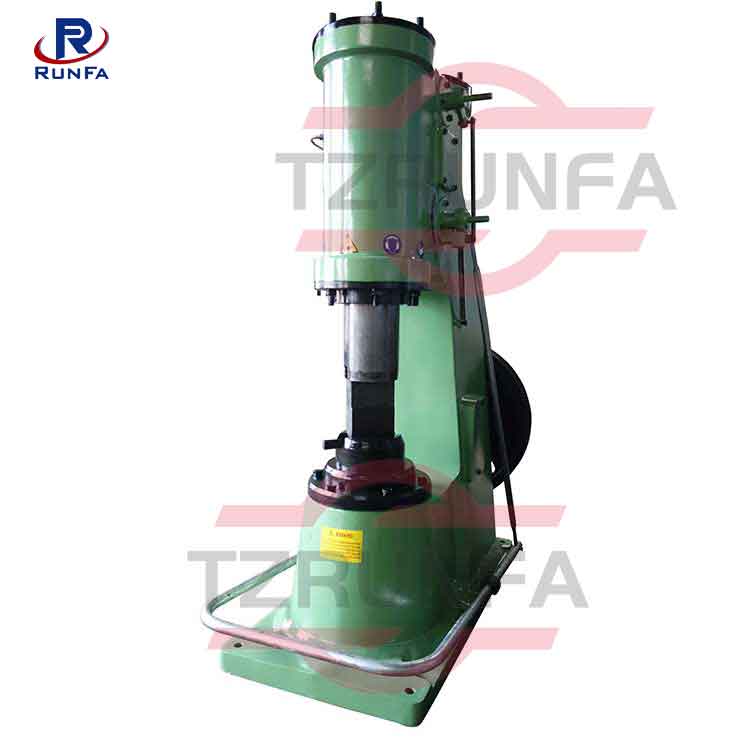

C41-75KG Single Forging Hammer
Product Name:
C41-75KG Single Forging HammerModel No.:
C41-75DMinimum Order:
1
Product Abstract:
Industrial self contained. No external air source needed. This eliminates the extra cost of an air compressor and the need for high pressure air lines.
- Product Description
Item
Unit
Numerical Value
Weight of falling parts
kg
75
Maximum blow energy
kJ
1
Distance from center of die to frame
mm
300
Distance between top and bottom die
mm
300
Number of blows per minute
min-1
210
Dimension of top to bottom
mm
145*65
Diameter of the working cylinder
mm
235
Diameter of the compressing cylinder
mm
240
Travel distance of malleus
mm
345
Travel distance of plunger
mm
200
Forges
Round
mm
Φ85
Square
mm
65
Motor
Power
kw
7.5
Rotate speed
rpm
1440
Outside Size
Length
mm
1500
Width
mm
720
High
mm
2050
Hammer weight
kg
~2200
