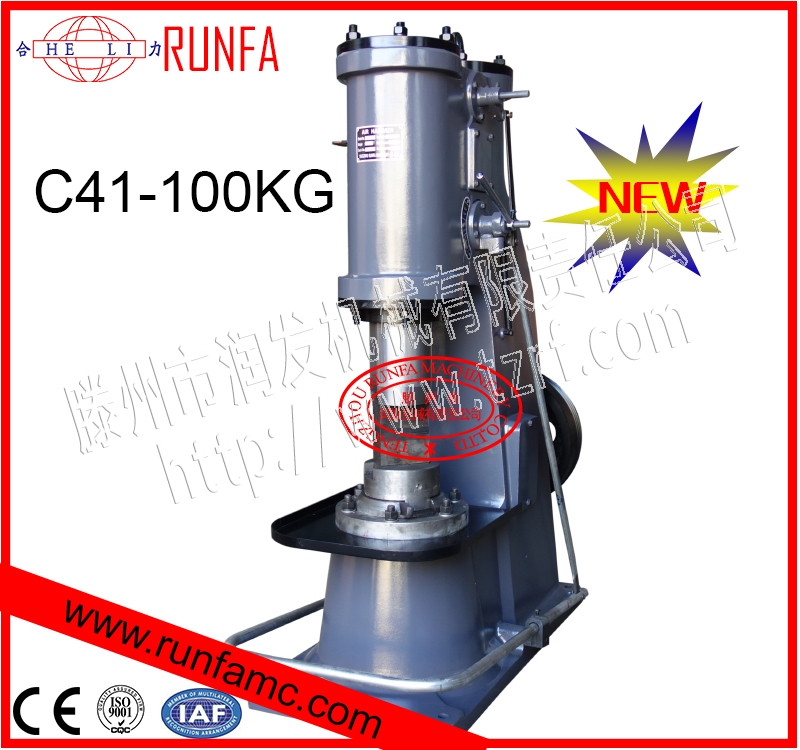

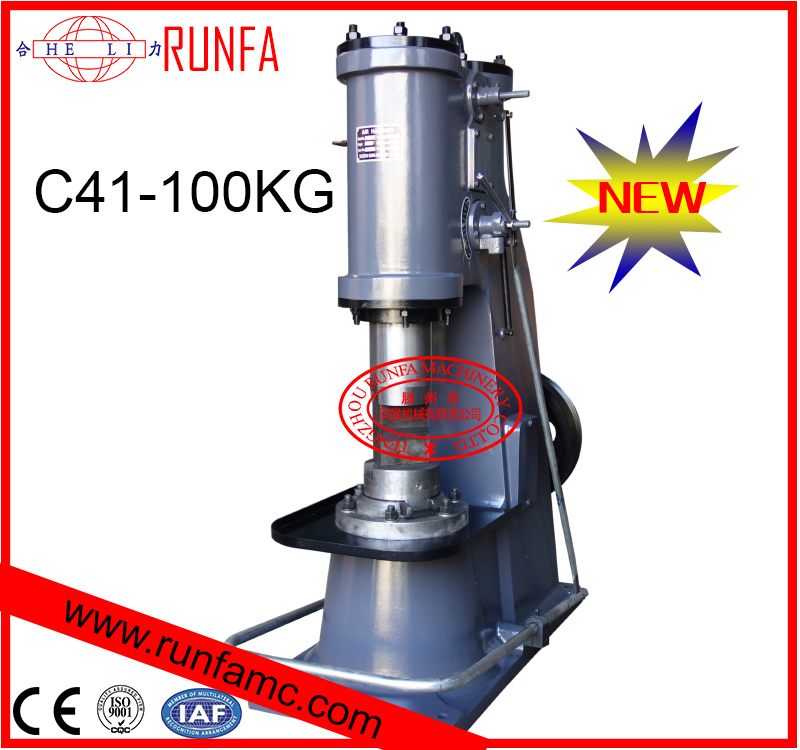

Air Power Forging HammerC41-100KG

  • Power Forging Hammer
  • Air Power Forging HammerC41-100KG
  • Deep Throat Forging Hammer PH-100KG

Product Abstract:

Main Features 1) Simple structure in single type ,easy in installation and maintation.  2) Adopting advanced design  components in pneumatic parts ,electric parts and operation parts.  3) High air pressure to provide more powerful hitting energy to forging workpiece.  4) Running in a reasonable speed to keep the hammer more efficiency . 5) Install with chip tray to keep workshop clean.


Product Description





Name

Unit

Specification

Rated weight of hammer tup

Kg

100

Maximum blow energy

Kj

1.8

Number of blows per minute

r/min

190

Bottom die surface to guide under face

Mm

340

Hammer tup axis to frame front

Mm

300

To die surface

Mm

155x 75

Bottom die surface

Mm

155 x 75

Maximum round steel can be forged(dia.)

Mm

120

Maximum square steel can be forged

Mm

110X110

Bottom die surface to the ground

Mm

763

Floor space(Long x Wide)

mm

1500x720

Machine height(above the ground)

Mm

2050

Motor type





Power

Kw

11

Speed

r/min

960

Total weight

Kg

2420
